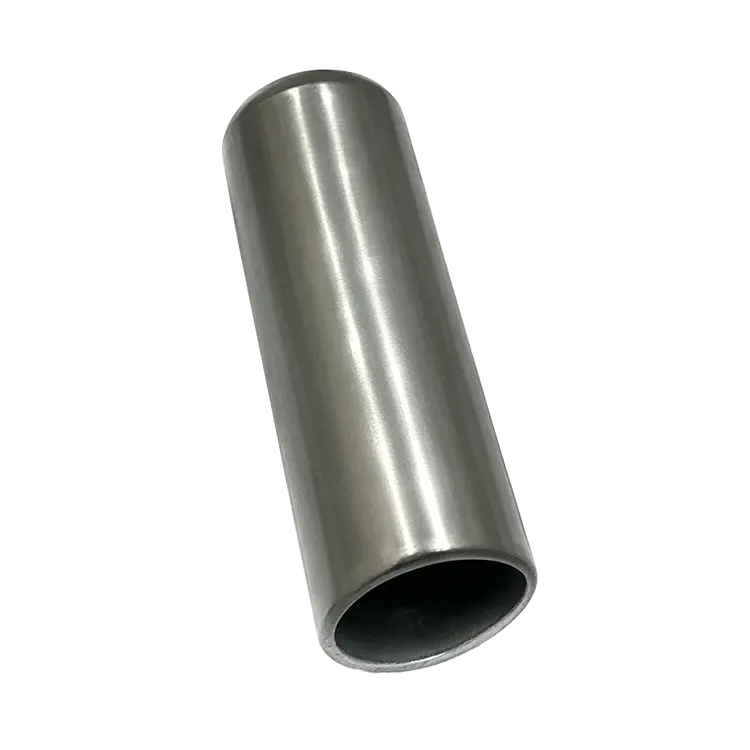

Wear Resistant Sleeve Bearing Cylindrical for Shaft Support

The cylindrical design of Qimao Metal Manufacturer Wear Resistant Sleeve Bearing Cylindrical for Shaft Support wraps around the shaft evenly distributing radial loads across the full sleeve length. Operators often choose this type when they need simple maintenance and reliable performance without complex bearing housings. The wear resistant layer is either cast into the base material or applied as a thin overlay depending on the grade you select. Many industrial users switch to this sleeve bearing after experiencing shaft scoring or noise from loose tolerances. It accepts contamination better than roller bearings because debris can embed into the softer lining rather than causing seizure. You can run this bearing with oil bath grease or even dry if the material and speed allow. Replacement is straightforward because the sleeve slips out axially without needing pullers or presses in most setups.

Unlike rolling element bearings this sleeve design handles shock loads better and runs quieter at lower speeds. It is machined to tight tolerances so shaft movement stays smooth over time. Many users pair it with grease or oil lubrication to extend service life. The bore size can be customized based on shaft diameter and housing dimensions. When installed correctly it reduces metal to metal contact and slows down wear on both the shaft and the bearing itself.

Product Parameter (Specification)

Product Feature

· Stable Shaft Alignment: Cylindrical geometry distributes radial loads evenly, keeping the shaft centered even under vibration or reversing loads.

· Wide Temperature Tolerance: Depending on material choice (bronze, PTFE, or stainless steel), these bearings perform from -40°C up to 250°C without dimensional creep.

· Low Maintenance Needs: Does not require constant relubrication in light to medium duty cycles, cutting down on machine downtime for busy shops.

· Contamination Friendly: Unlike ball bearings, this sleeve design allows small debris to embed into the lining instead of causing seizure or jamming.

· Cost Effective: Lower cost per operating hour compared to rolling element bearings, especially in dirty, wet, or poorly lubricated conditions.

· Wear Resistant Surface: The inner bore is hardened or lined with embedded lubricants to handle constant shaft contact without scoring or galling over extended run times.

Application

· Electric Motors & Pumps:  Wear Resistant Sleeve Bearing Cylindrical for Shaft Support used on rotor shafts inside motor housings or pump impeller sides where compact radial support is needed under steady loads.

· Agricultural Equipment: Conveyors, balers, and harvesters rely on these sleeves because dust and dirt quickly destroy regular ball bearings.

· Industrial Fans & Blowers: Fits onto drive shafts running long continuous hours with moderate vibration levels and limited access for maintenance.

· Marine & Dock Gear: Ideal for deck crane sheaves and rudder stocks where saltwater, shock loads, and corrosion resistance are daily concerns.

· Food Processing Lines: Food-grade versions support washdown conveyor shafts, handling regular cleaning sprays without rusting or contaminating product zones.

· Mining & Vibrating Feeders: Extra heavy wall versions support shafts on vibrating screens and feeders, absorbing high impact loads without cracking.
