304 Stainless Steel Material Waterjet Nozzle Guide Bushing

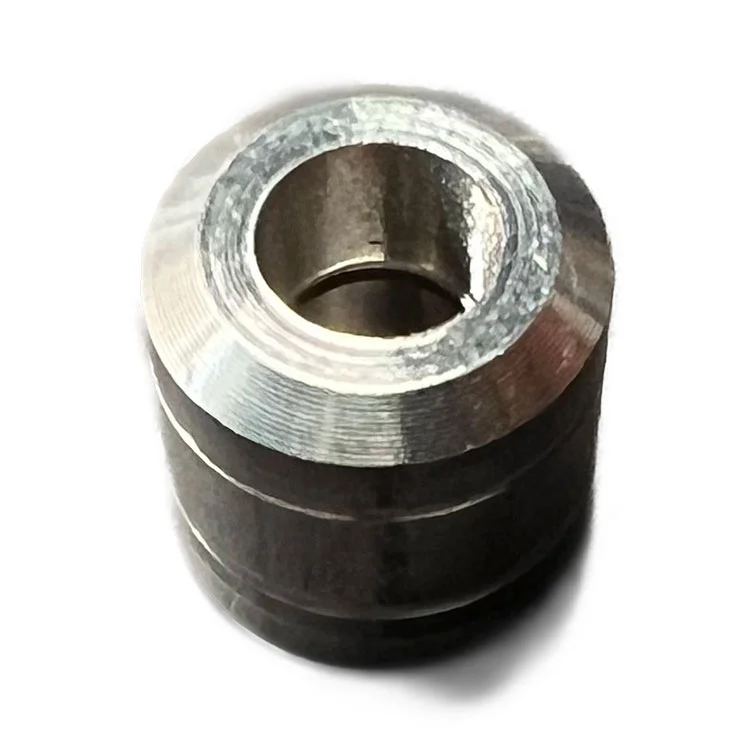

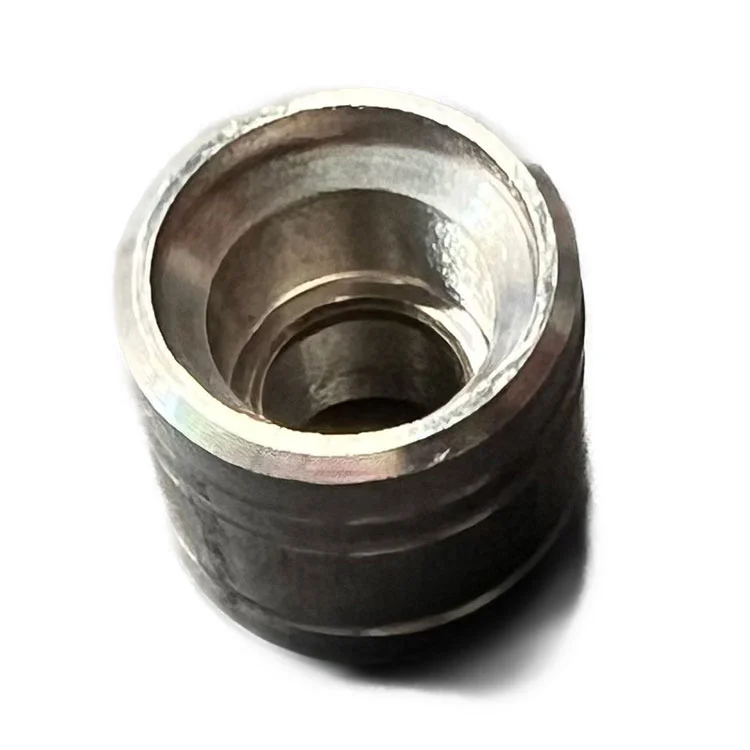

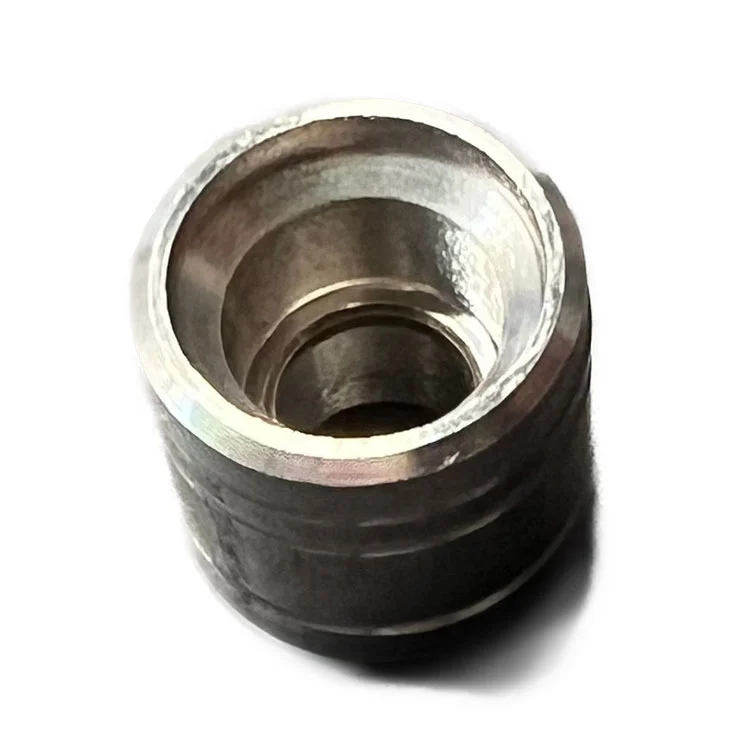

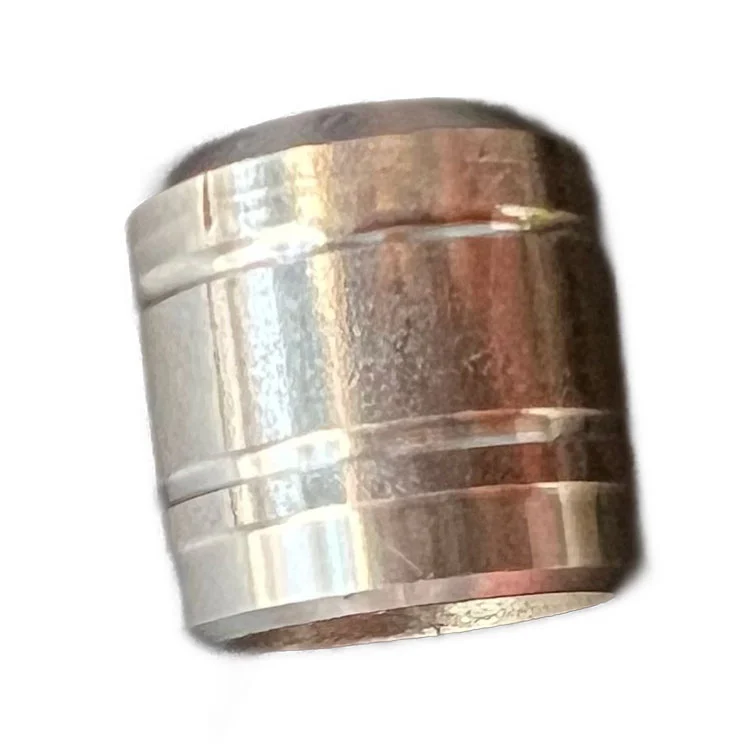

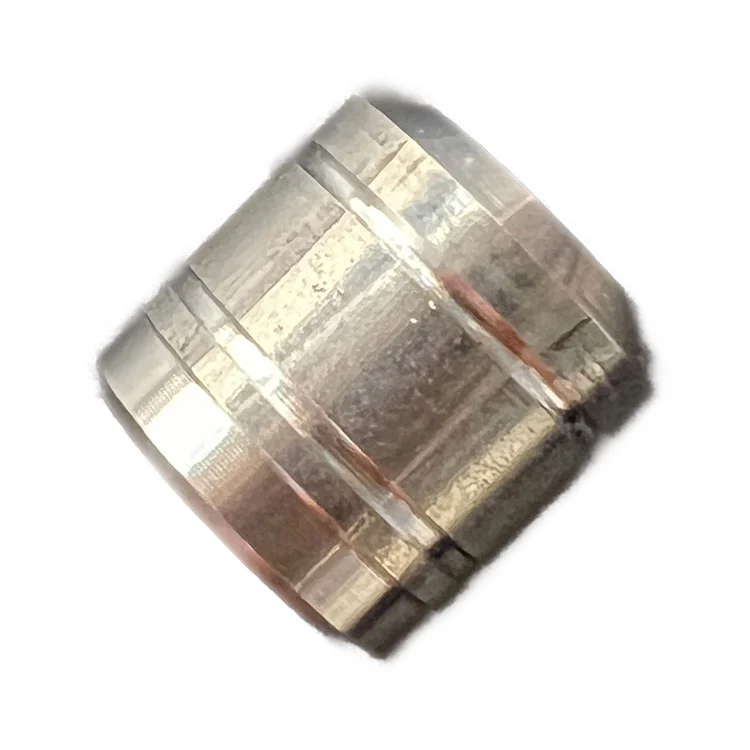

This 304 Stainless Steel Material Waterjet Nozzle Guide Bushing is small and round. It has a straight through-hole for the waterjet stream. The outer wall is smooth and with 2 grooves. Both ends are flat and square-cut, not tapered. The 304 stainless steel body gives it a silver-gray color and a slightly brushed finish. The wall thickness is even all around, so the nozzle sits straight. The overall length is short, usually under two inches. The outer diameter matches standard cutting head cavities. The inner diameter matches the nozzle outer size. No extra features like flanges or collars. Just a simple, solid ring that slides in and out easily.

Product Parameter (Specification)

Product Sell points

1.Handles high pressure – 304 stainless steel stands up to the extreme water pressure inside the cutting head. No cracking or warping.

2. Resists rust – Water won't cause corrosion. Lasts longer than plain steel or coated parts.

3. Keeps nozzle straight – The Qimao Metal Manufacturer 304 Stainless Steel Waterjet Nozzle Guide Bushing holds the nozzle in line. Water stream stays accurate, cut quality stays consistent.

4. Easy to swap – Pull out the worn one, push in a new one. No retooling or adjustments needed.

5. Direct replacement fit – Made to standard sizes. Works with most waterjet machines. Also available from your sample or drawing.

6. Qimao Metal Manufacturer – A China factory that offers competitive price for regular orders. Small quantities accepted.

How to Use

1.Turn off the switch

Before change the cutting head, shut down the waterjet and release water pressure completely

2. Remove the old bushing

Use pliers or a puller tool to take out the worn guide bushing from the cutting head.

3. Clean the cavity

Before using the 304 Stainless Steel Material Waterjet Nozzle Guide Bushing, wipe the inside hole with a clean rag first. Remove any grit, rust, or old sealant. The new bushing needs a clean, smooth surface to sit properly.

4. Insert the new bushing

Push the new 304 stainless steel guide bushing into the hole . If it fits not tight enough, tap it gently with a rubber mallet or a soft block. Do not hit it with a metal hammer.

5. Reinstall the nozzle

Put the nozzle back on. Tighten it by hand, then turn with a wrench. Do not over-tighten.

6. Test before full operation

Turn on the water. Check if leak around the bushing and nozzle. If no leaks, raise to normal pressure and run a short test cut.

7. Check wear regularly

Inspect the 304 Stainless Steel Waterjet Nozzle Guide Bushing every 100–200 operating hours. If you find any leaks or broken, change a new one again.

Production Details

This 304 Stainless Steel Material Waterjet Nozzle Guide Bushing is made from 304 stainless steel. It fits inside the waterjet cutting head to keep the nozzle aligned. The body is a short, straight cylinder with a center hole. The outer surface has two shallow grooves. These grooves help release pressure or catch fine grit. Both ends are flat and smooth. No threads, no coatings. The material resists rust and handles high water pressure. When the old bushing wears out, just pull it out and push this one in. Qimao Metal Manufacturer supplies these in standard sizes or from your sample. Competitive price for regular orders.
