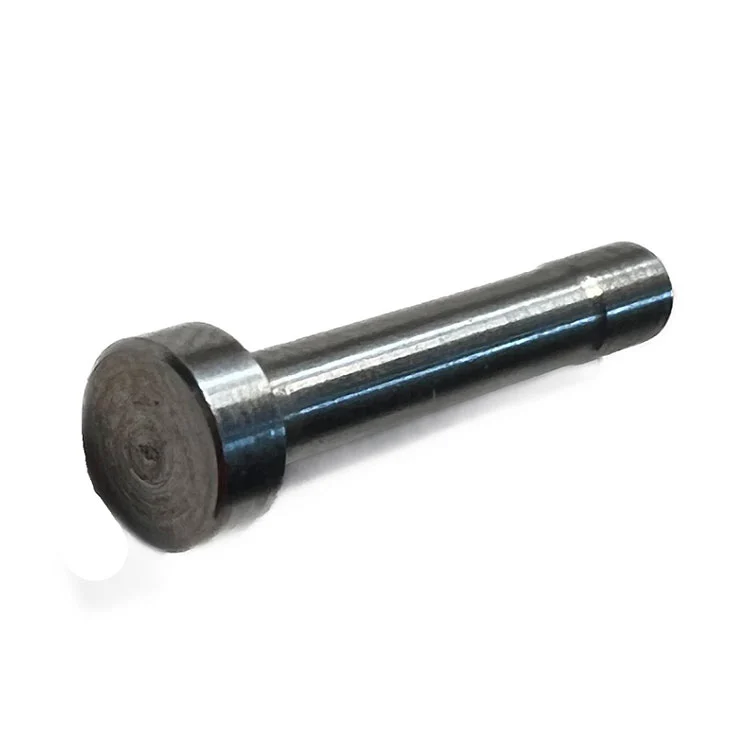

Quick Change Tool Free Flat Head Stepped Locating Pin for Assembly Lines

This durable Quick Change Tool Free Flat Head Stepped Locating Pin for Assembly Lines from Qimao Metal Manufacturer enables instant, no-tool changeovers on assembly lines. The spring-loaded detent mechanism allows operators to remove or insert the pin by hand, reducing downtime significantly. The flat head stays softer so it won't chip if you tap it. Each pin gets a quick pass on a comparator to check step depth and head thickness. Tolerances hold at plus or minus 0.01mm on the steps. Packed in waxed paper bags, ten per small cardboard box.

The flat head stepped locating pin design provides precise Z-axis positioning, while the flat head sits flush against fixtures. Ideal for pallet stops, workpiece locating stations, and modular fixturing systems. Constructed from hardened tool steel with anti-wear coating.

Compatible with standard receiver bushings. Color-coded head options aid visual identification of pin sizes. Eliminate wrenches, reduce ergonomic strain, and accelerate model changeovers with this quick-change pin solution.

How To Use

Push the pin straight into the first locating bore until the flat head touches the plate surface. That's it – no tools needed. The stepped part finds its own depth because the larger step stops against the counterbore. If the Quick Change Tool Free Flat Head Stepped Locating Pin for Assembly Lines goes in crooked, pull it out by gripping the head edge with two fingers and try again. For tight bores, wipe a tiny drop of light machine oil on the step diameter – never on the flat head surface. To remove, hook a fingernail under the head edge or use a plastic pry wedge. Don't use a metal screwdriver unless you don't care about scratching the plate. On fast assembly lines, operators can swap pins in under two seconds.

Product Parameter (Specification)

Factory Advantage

We Qimao Metal Manufacturer keep the tool mold customization for all client. For regular order customer, we usually ready for stock of the products, such as Quick Change Tool Free Flat Head Stepped Locating Pin for Assembly Lines, so no setup fee for quantities over 500 pieces, if you place the mold, and plan place order re-order. No more additional fee to you. We use automatic lathes with live tooling, not manual turret machines. That means consistent step depths across the whole batch. Every pin gets a hardness test from the case and the core before packing. Your purchase order comes with a simple inspection sheet – actual numbers, not just checkmarks. If you need a non-standard step height, we can usually run it within five working days. No MOQ for samples. You can talk to the machinist who runs the job, not just a sales person.

Custom Product Process

Tell us your top step diameter, bottom step diameter, overall length, and flat head thickness.

Such as the product of Quick Change Tool Free Flat Head Stepped Locating Pin for Assembly Lines. Send a rough sketch – doesn't need to be perfect. Or it’s better offer the draw to us for check. We confirm the step drop (the difference between the two diameters) and the material you want. Then our tooling guy checks if we have the right carbide insert or need to grind one. For most custom sizes, we give you a drawing within one-there days and a price within two days. Sample run is usually 20 to 50 pieces. You test them on your fixture. If the step fit feels too loose or too tight, we adjust by 0.005mm and run again. Production starts after you sign off on the sample.
