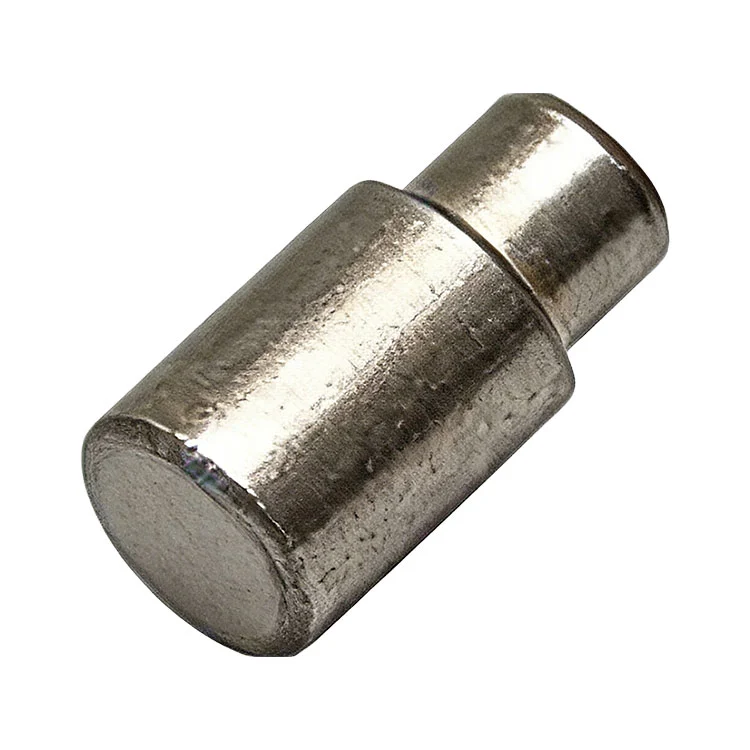

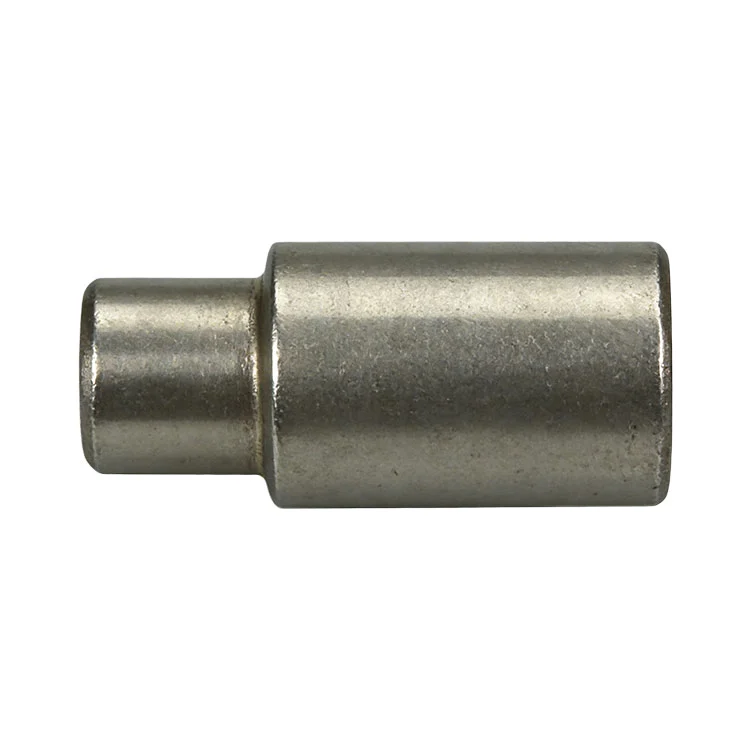

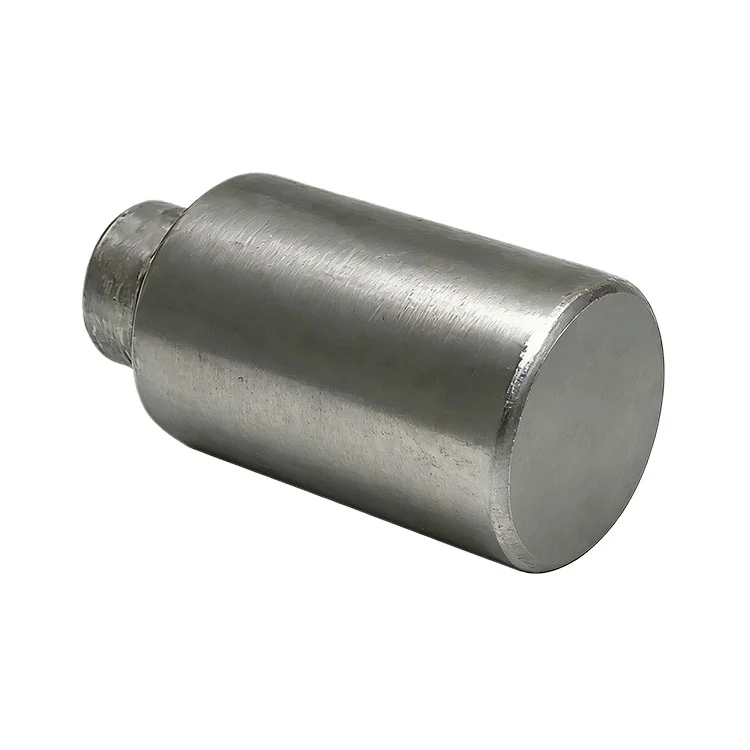

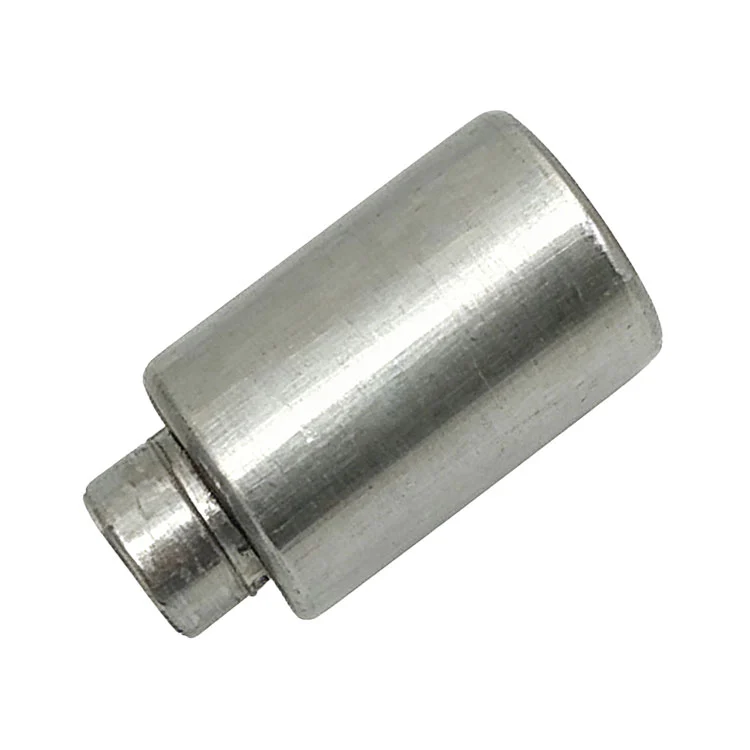

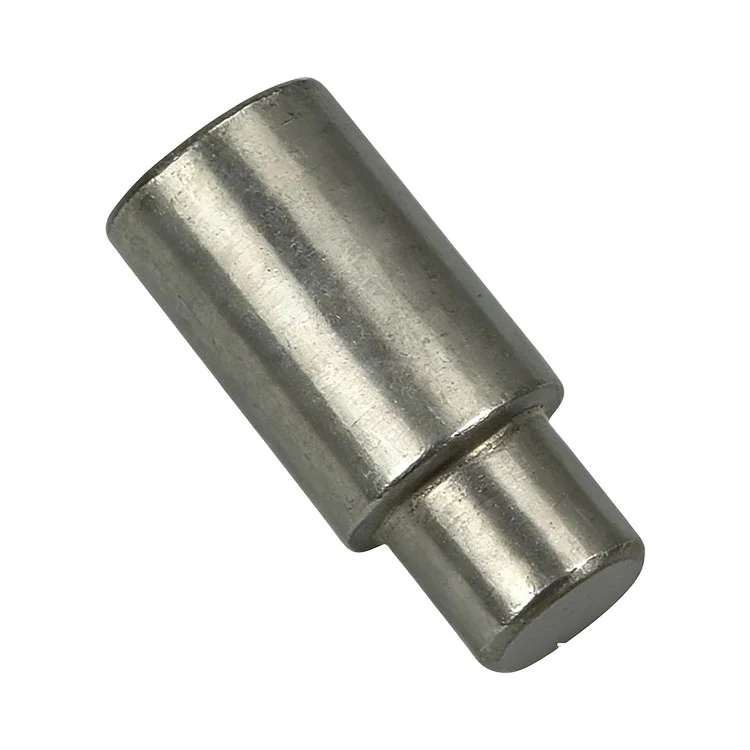

Cold Heading Stepped Dowel Pin for Machinery and Automotive

Qimao Metal Manufacturer produces Cold Heading Stepped Dowel Pin for Machinery and Automotive. This pin with two different diameters on one body. when inserted It stops exactly at the step. Perfect for aligning parts in engines or gearboxes. Buyers searching for stepped locating pin, cold heading dowel, or auto machinery pin will find our product reliable. Strong, cheap, and ready to ship.

Product Parameter (Specification)

Product Feature

1. High-precision stepped design

Formed by cold heading in one process. Diameter difference at the step is controlled within ±0.02mm. The step surface is smooth and burr-free, Qimao Metal Manufacturer ensuring accurate positioning and preventing over-insertion.

2. High strength and durability

Cold Heading Stepped Dowel Pin for Machinery and Automotive heading maintains complete metal flow lines with no cutting weak points. Work hardening improves tensile strength and shear resistance. Stronger and more durable than machined pins.

3. Excellent material properties

Made of quality carbon steel, alloy steel, or stainless steel etc. Hardness reaches HRC25-40 after heat treatment. Good corrosion resistance and wear resistance for harsh environments.

4. Easy and fast installation

No secondary machining needed. It will be pressed directly into holes. Suitable for automatic assembly lines to improve production efficiency.

5. Good dimensional consistency

Cold heading process ensures consistent size from batch to batch. High surface finish and good interchangeability.

Application

1. Automotive transmissions and engines

Qimao Metal Manufacturer Cold Heading Stepped Dowel Pin for Machinery and Automotive used for gear positioning, shaft fixing, and connection between shifters and transmissions. The step design prevents the pin from falling out and ensures stable drivetrain operation.

2. Precision machinery equipment

Suitable for CNC machines, industrial robots, and automatic production lines for precise positioning and connection, ensuring smooth and accurate operation.

3. Heavy industrial machinery

Suitable for presses, construction machinery, and other high-vibration environments. High strength ensures no deformation under long-term use.

4. Electronics and precision instruments

Used for PCB board fixing parts and optical equipment connections. Small-sized stepped pins meet miniaturization requirements.

Production Details

We Qimao Metal Manufacturer use strict cold heading technology to ensure every Cold Heading Stepped Dowel Pin for Machinery and Automotive has consistent diameter and smooth step transition. No secondary cutting needed, saving your assembly time. Our pins pass 100% quality checks for hardness and straightness. With fast delivery and competitive pricing for bulk orders, Qimao is your reliable partner for machinery and automotive fasteners.
