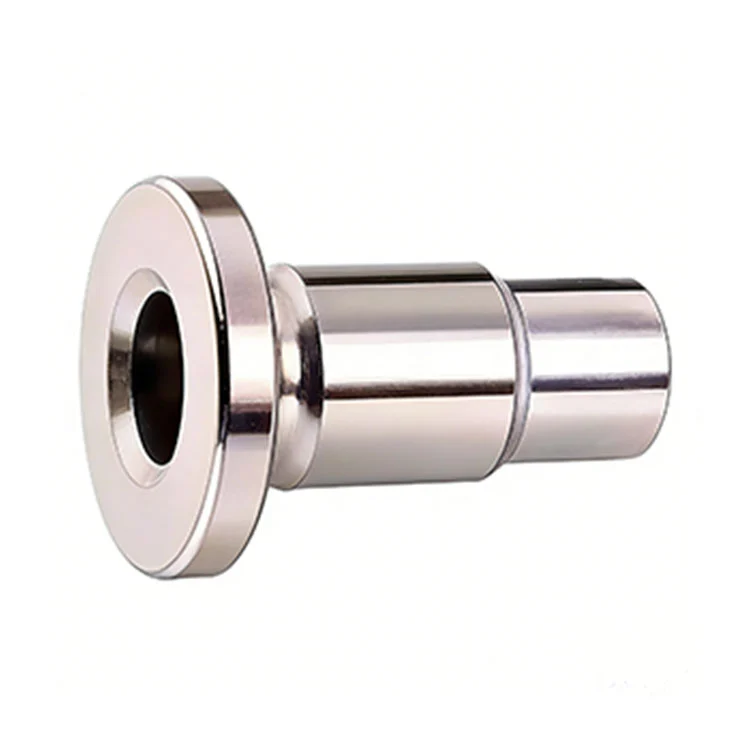

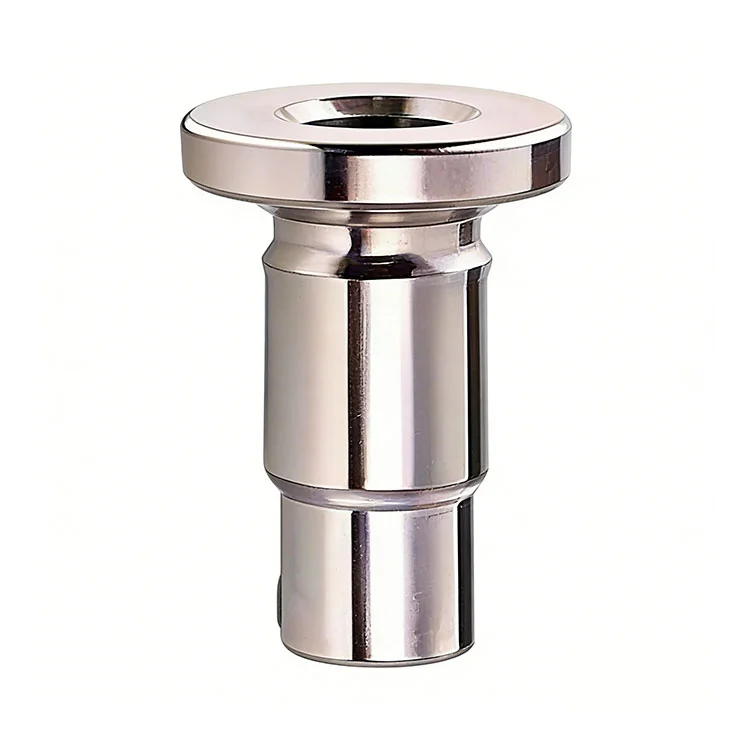

Stainless Steel Flanged Hollow Stepped Dowel Pin

The durable Stainless Steel Flanged Hollow Stepped Dowel Pin from Qimao Metal Manufacturer, is a crucial cylindrical fastener in mechanical engineering. Its unique hollow core design sets it apart from traditional solid dowel pins. It is widely used in mechanical assemblies to ensure accurate positioning and alignment of components, playing a vital role in maintaining the overall stability and performance of mechanical systems.

Product Parameter (Specification)

Product Feature

1. Qimao Metal Manufacturer Stainless Steel Flanged Hollow Stepped Dowel Pin reduces weight and material usage while maintaining strength..

2. Offers options such as steel and stainless steel for different performance needs, available in various materials like steel and stainless steel, which offer different levels of strength.

3. Corrosion resistance, and durability, allowing customers to choose according to their specific application needs.

4. Designed for straightforward easy installation, it can be quickly inserted into pre - drilled holes in components, saving time and labor in the assembly process.

Application

1. Automotive Industry: Qimao Metal Manufacturer Stainless Steel Flanged Hollow Stepped Dowel Pin used for positioning engine components, transmission parts, etc., to ensure accurate assembly and smooth operation of vehicles.

2. Aerospace Industry: Ideal for lightweight and high - precision positioning in aircraft structures, and can help to reduce the overall weight of the aircraft while maintaining structural integrity.

3. General Machinery Manufacturing: Applied in various mechanical equipment for component positioning, such as in machine tools, industrial robots, etc.

Production Details

This stainless steel flanged hollow stepped dowel pin is made for jobs where regular pins just don’t cut it. The flange lets you bolt it directly onto fixtures or molds—no hammering or press-fitting required. The stepped design stops it from going in too deep, so alignment stays consistent every time. Being hollow (or threaded) means you can run a bolt right through, which is handy for stacking plates or quick-change setups. Made from stainless steel, it won’t rust easily even around coolant or moisture. If you're tired of fighting stuck pins or guessing your positioning, this one saves a lot of headaches.
