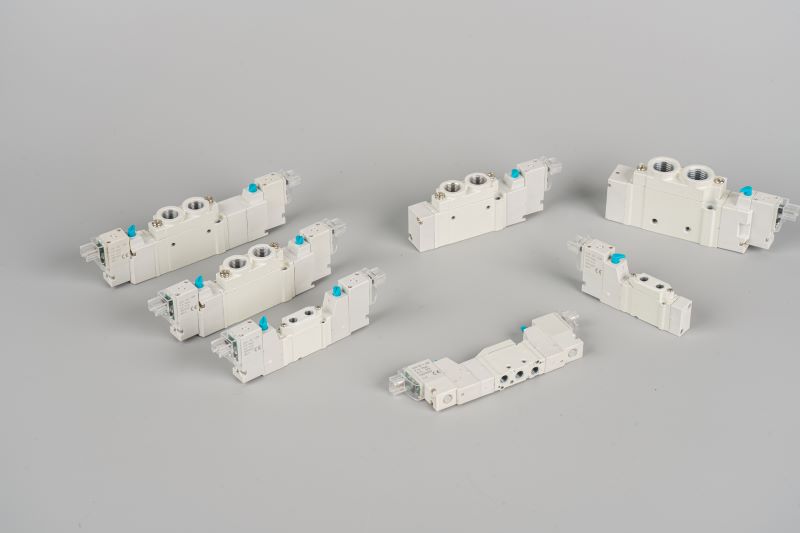

Solenoid Valve for HVAC System

Solenoid Valve for HVAC System

Component:

●Coil: The coil is the heart of the solenoid valve. When energized, it creates a magnetic field. Different coil designs can be used depending on the power requirements and operating conditions of the HVAC system. For example, some coils are designed for low - voltage applications, while others are for high - voltage ones.

●Plunger: The plunger is a movable component within the valve. The magnetic field generated by the coil causes the plunger to move. In a normally - closed valve, the plunger seals the valve opening when the coil is not energized. When the coil is powered, the plunger is pulled away, allowing fluid to flow.

●Valve Body: The valve body houses the coil and the plunger. It is made of materials that are resistant to corrosion and can withstand the pressure and temperature of the fluids being controlled. Common materials include brass, stainless steel, and cast iron.

working principle

When an electrical signal is sent to the coil, Solenoid Valve for HVAC System magnetizes the plunger. If it is a normally - closed valve, the magnetic force overcomes the spring force or fluid pressure holding the valve closed, and the valve opens to allow fluid flow. When the electrical signal is removed, the magnetic field dissipates, and the valve returns to its original closed position. In a normally - open valve, the opposite occurs. When the coil is energized, the valve closes.

●On - Off Control: This is the most basic control mode. The valve is either fully open or fully closed. It is commonly used in simple HVAC systems where a binary control of fluid flow is sufficient, such as in some small - scale air - conditioning units.

●Modulating Control: In more advanced HVAC systems, the valve can be modulated. This means that the valve can be opened to different degrees, allowing for precise control of the fluid flow rate. This is useful in systems where temperature and humidity need to be precisely regulated, such as in commercial buildings or data centers.

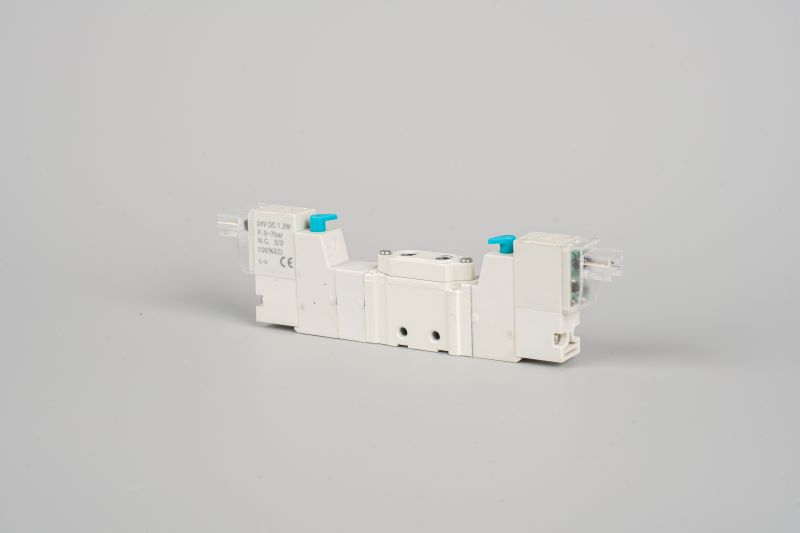

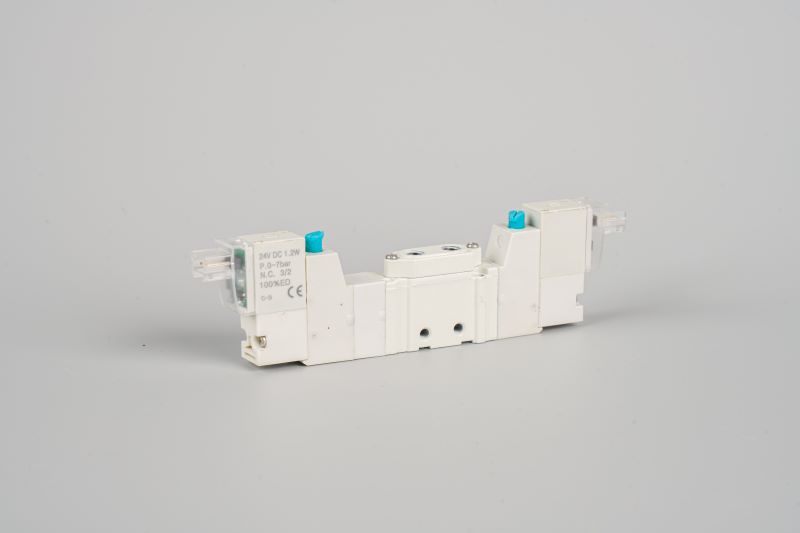

Specification Of Solenoid Valve for HVAC System:

Valve function:	5/3
Medium:	Compressed Air
Working Pressure:	0-1.6bar
Voltage:	DC 24V
Protection Insulation class	H
Protection Class	IP65
Power:	1.2W
Maximum Operating Frequency	Off load 50/sec
Power Connector Style:	L style
Working Temp:	-10℃～+80℃
Working Life:	>30 million

Product Feature:

●Quick response：Solenoid Valve for HVAC System can open and close very quickly, typically within milliseconds. This allows for rapid adjustment of the fluid flow in the HVAC system, enabling quick changes in temperature and pressure control. For example, in a refrigeration system, a fast - acting solenoid valve can quickly stop or start the flow of refrigerant to maintain the desired temperature.

●Precise control：They offer high - precision control of fluid flow. Whether Solenoid Valve for HVAC System is a small drip or a large - volume flow, the valve can be accurately adjusted to meet the system's requirements. This is essential for maintaining the efficiency and performance of HVAC systems, especially in applications where strict temperature and humidity control are necessary.

●Strong reliability： With a relatively simple design and few moving parts, Solenoid Valve for HVAC System have a long service life and are less prone to mechanical failures. They can operate continuously for long periods without significant maintenance, reducing downtime and repair costs for HVAC systems.

●Energy saving： By precisely controlling the fluid flow, Solenoid Valve for HVAC System help reduce energy consumption. For example, in a heating system, the valve can stop the flow of hot water when the desired temperature is reached, preventing over - heating and saving energy.

●Easy installation and integration： These Solenoid Valve for HVAC Systemare relatively easy to install in HVAC systems. They can be directly connected to the existing piping and electrical systems. Additionally, they can be easily integrated with other control components, such as thermostats and sensors, to form a comprehensive HVAC control system.

Product Applications:

●Residential air conditioning system： In residential air - conditioning units, Solenoid Valve for HVAC System are used to control the flow of refrigerant. They can also be used in home heating systems, such as in radiant floor heating, to regulate the flow of hot water.

●Commercial building HVAC： In large commercial buildings, including offices, shopping malls, and hotels, Solenoid Valve for HVAC Systemare used in central air - conditioning systems, ventilation systems, and boiler systems. They help maintain a comfortable indoor environment by precisely controlling the flow of air, water, and refrigerant.

●Industrial HVAC applications： Industries such as food processing, pharmaceuticals, and data centers require strict temperature and humidity control. Solenoid Valve for HVAC System in industrial HVAC systems are used to control the flow of chilled water, steam, and other fluids to ensure the proper operation of production processes and equipment.

●Refrigeration and freezing systems： In refrigeration and cold storage facilities,Solenoid Valve for HVAC System are crucial for controlling the flow of refrigerant. They help maintain the low temperatures required for storing perishable goods.
