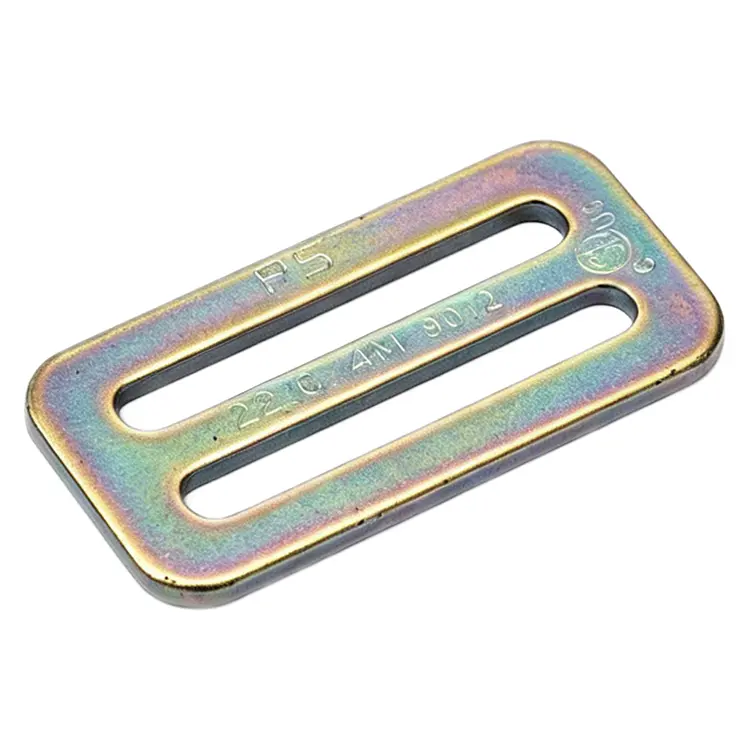

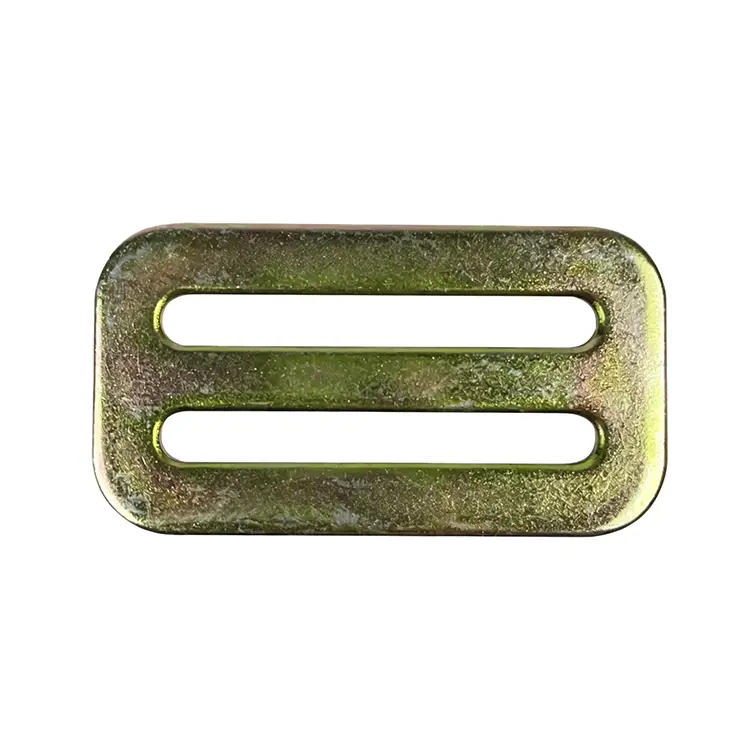

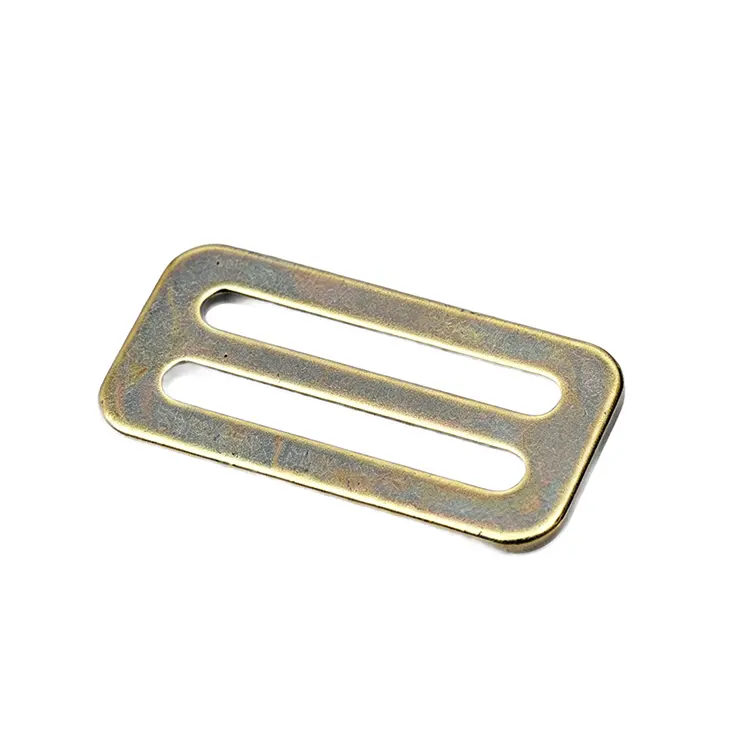

Metal Strap Slide Buckle Adjuster for Safety Belt And Outdoor Strap

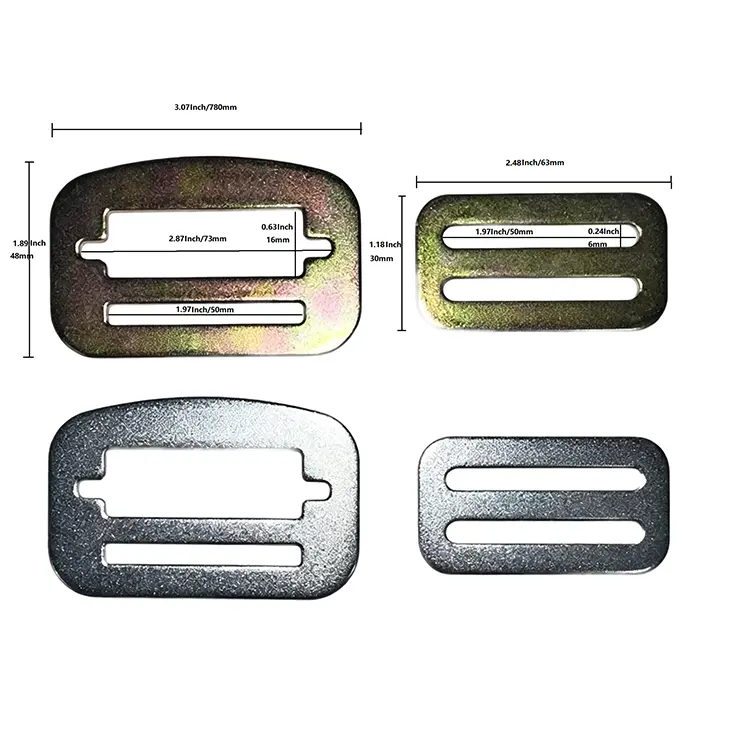

The Qimao Metal Manufacturer durable Metal Strap Slide Buckle Adjuster for Safety Belt And Outdoor Strap Width sizes we keep in stock: 50mm and 65mm. That covers most safety belts and outdoor straps. For the 38mm steel buckle, each piece weighs 28 grams. Not heavy but not flimsy either. The raw material is either 45# carbon steel or zinc alloy, steel gives you 350kg break load, zinc gives you 250kg.

Unlike plastic buckles, this one won’t crack in cold weather or weaken under UV light. Many of our customers use it for climbing harnesses, heavy tool belts, and camping gear. The surface is zinc-plated or powder-coated for corrosion resistance. If you are tired of buckles that jam or slip, this one gives you a clean, positive click every time. Send us your drawing if you need custom dimensions or logo engraving.

Product Details

1. Surface options: bright zinc (silver), black powder coat, or yellow zinc. Salt spray test runs 48b hours with no red rust.

2. Temperature range from -30°C up to 80°C. We tested that in our own freezer and oven.

3. Button travel is 6mm from open to locked. You will feel a solid click when the male plug seats.

4. Center bar thickness is 5mm. We bent a few on purpose at 400kg and they just spring back.

5. Dimension tolerance is plus/minus 0.2mm. That means a standard 1.5-inch nylon webbing slides through smooth but doesn't rattle.

6. Each piece gets a hand check for sharp edges because tumbling misses some.

7. No plating bubbles either – we reject those before packing.

Product Parameter (Specification)

Product Feature

1. This Metal Strap Slide Buckle Adjuster for Safety Belt And Outdoor Strap female buckle is cold-forged from a single piece of metal, so there are no welded weak points that break under sudden pull.

2. The side-release mechanism passed our in-house test for 5,000 cycles without jamming or loosening.

3. A curved center bar lets you adjust strap length infinitely, not just in fixed holes like some plastic buckles.

4. We add a slight ergonomic curve to the body so it sits better against the human waist or chest for safety belts.

5. Surface treatment passes 48-hour salt spray test with no red rust, even after scratches during shipping.

6. All edges are hand-deburred, not just machine-tumbled, because sharp edges cut webbing over time.

7. The female part accepts standard male plugs from most suppliers, but we recommend using our matching pair.

8. Every batch gets a random pull test before packing – anything under 300kg gets rejected and remelted.

Application

1. Construction safety belts and window-washing harnesses where a fall could be fatal – this buckle holds reliably.

2. Metal Strap Slide Buckle Adjuster for Safety Belt And Outdoor Strap Tactical vests and police duty belts that need quick one-hand release even under stress or sweat.

3. Heavy backpack hip belts for hikers who carry more than 20kg and need infinite strap adjustment.

4. Horse tie-down straps and kayak seat belts that face outdoor weather year-round without cracking.

5. Repairing old climbing harnesses that still have good webbing but broken original buckles.

6. Wheelchair safety straps for users who need to operate the buckle with only one hand.

7. Off-road vehicle straps to secure gas cans or toolboxes where plastic buckles melt in summer heat.

8. Pet car harnesses for large dogs that chew through plastic – metal stops them quickly.

How To Use

1. Cut the Metal Strap Slide Buckle Adjuster for Safety Belt And Outdoor Strap end at a 45-degree angle so it slides through the fixed slot on the female buckle more easily.

2. Thread webbing from the back side through the first fixed slot, then over the center bar, then down through the second fixed slot.

3. Pull the tail until the buckle sits where you want, then sew a bar tack stitch 1cm from the buckle to stop it from sliding off.

4. To engage the male part, squeeze the two side prongs inward and insert into the female body until you hear a click.

5. To tighten while buckled, pull the free tail of the webbing away from the buckle body.

6. To loosen, tilt the buckle slightly and push the webbing back toward the buckle.

7. To release, squeeze both side buttons on the male plug and pull the two parts apart.

8. Practice five times on a bench before using on a real safety belt, and never use if the webbing shows fraying.
