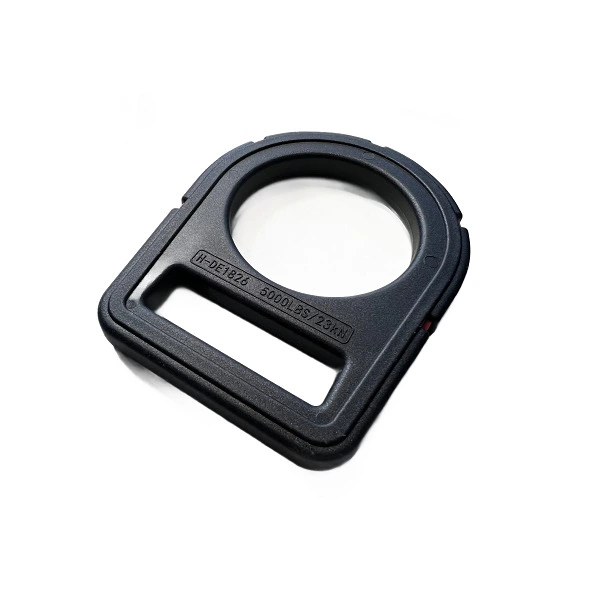

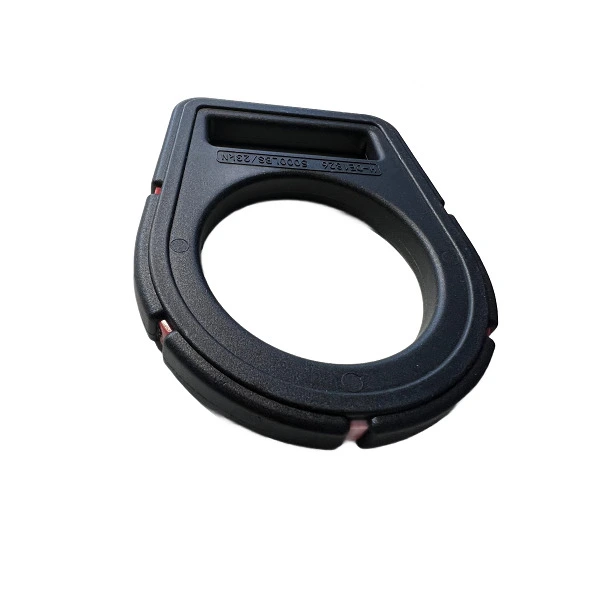

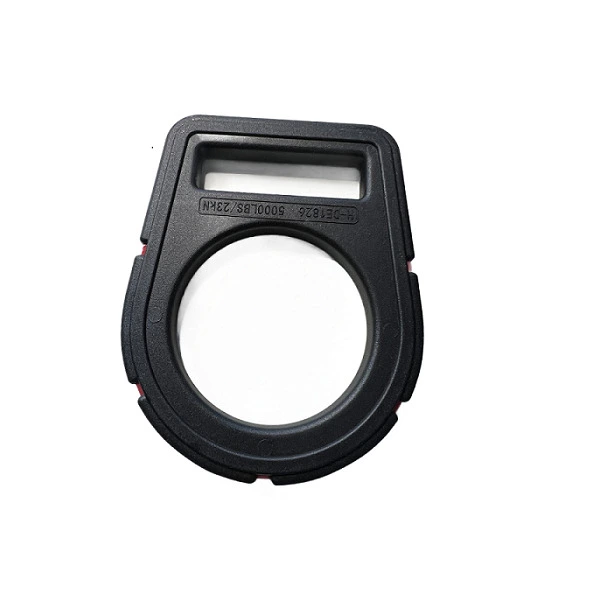

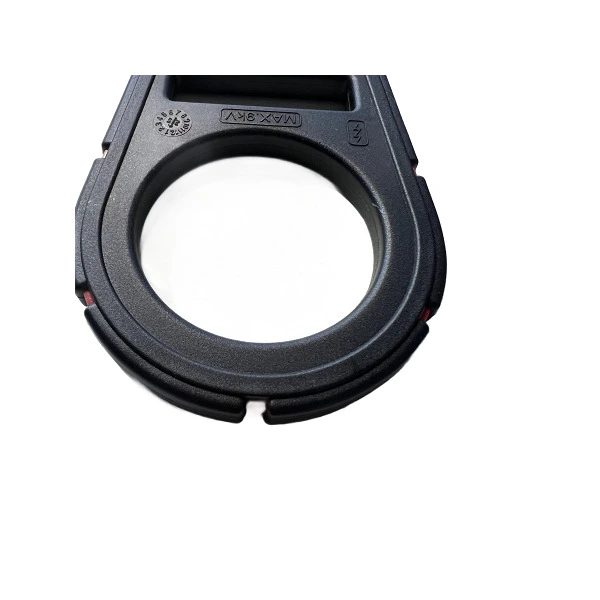

Heavy-Duty 23KN D Ring Safety Harness Fall Protection with Protective Cover

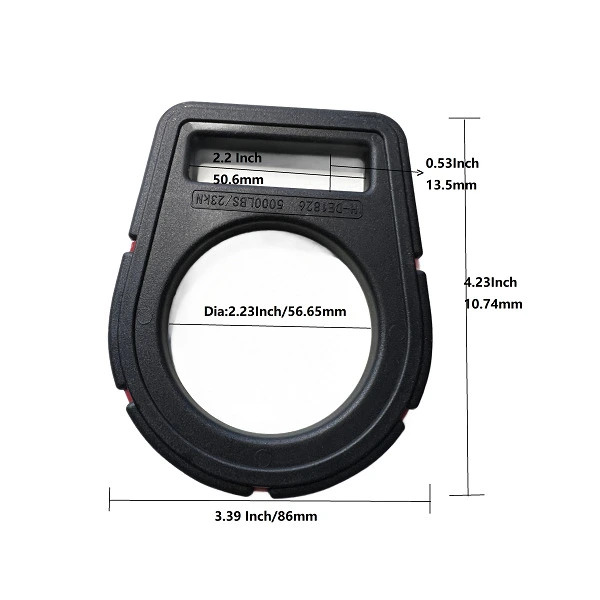

The quality Heavy-Duty 23KN D Ring Safety Harness Fall Protection with Protective Cover from Cixi Qimao Metal Manufacturer rated at 23KN / 6000lbs. The opening measures about 2.2 inches wide, so it fits heavy lanyards or webbing without jamming. Thickness hits 0.53 inch at the wear point, which tells you it won't bend open under sudden shock loads.

No wear

What actually makes it useful? The rounded inner curve doesn't cut into stitching over time. That's rare on cheaper stamped rings. The diameter sits at 56.65mm, giving you enough room for two snap hooks side by side if needed.

Main Advantage

1. The main advantage is predictability. You know exactly where the 23KN rating applies because the forging grain flows continuously around the arch. No weld spots, no hidden weak seams.

2. It also resists corrosion better than folded or welded rings. For harness builders or rigging shops, this means fewer callbacks and less field failure talk. It's a solid, inspectable component that works the same way every shift.

Product Parameter (Specification)

Product Feature

1. 23KN / 6000lbs rating – That’s the real working load limit, not a marketing number. The products Heavy-Duty 23KN D Ring Safety Harness Fall Protection with Protective Cover matches most fall arrest and tow lines without guessing.

2. Thick wear point (0.53 inch / 13.5mm) – Stamped rings thin out here. This one stays thick, so it won’t gouge or flatten after repeated steel-on-steel contact.

3. Generous inner opening (2.2 inches / 56.65mm wide) – Two snap hooks or a thick webbing loop fit side by side. No jamming when you’re in a hurry to clip off.

4. No weld spots – Forged in one piece. The grain flows around the arch, so there’s no hidden seam to crack under a sudden jerk.

5. Rounded inner curve – Doesn’t chew up your harness webbing or sling stitches. Cheap D-rings have sharp bends. This one doesn’t.

How To Use

1. Lay it flat – Back the Heavy-Duty 23KN D Ring Safety Harness Fall Protection with Protective Cover (with cover) facing up. Untangle all straps.

2. Loosen everything – Pull all straps to max length so the harness looks oversized.

3. Step in – Left leg then right leg. Pull harness up to waist. Cover should sit between shoulder blades.

4. Arms in – Put arms through shoulder straps. Chest strap hangs at mid-chest.

5. Close chest buckle first – Adjust so two fingers fit sideways under strap.

6. Close leg buckles – Snug but not tight. You should be able to squat without pinching.

7. Tighten shoulders – Pull both straps evenly. Cover stays centered on your back.

8. Test fit – Squat and reach overhead. No binding or choking.

9. Clip lanyard – Clip through the cover opening into the D-ring itself, not around the cover.

10. Final check – No twisted straps. Cover lies flat. All loose ends tucked.

Why Choose Us?

1. We’re Qimao Metal Manufacturer not a middleman. We run our own forging line, so every D ring gets handled by the same five guys who’ve done it for twelve years. No sudden factory switches. No “close enough” batches.

2. When you order Heavy-Duty 23KN D Ring Safety Harness Fall Protection with Protective Cover, we actually test them—not just the first one off the line, but random pulls throughout the run. You get traceable numbers, not a sticker.

3. Our lead times don’t bounce around. If we say three weeks, it ships in three weeks. And if a ring looks wrong? We eat the cost, not you.

4. You also get someone on the phone who knows what a wear point means. No scripts. No ticket numbers that go nowhere. Just straight answers and consistent hardware that shows up the same every time.
