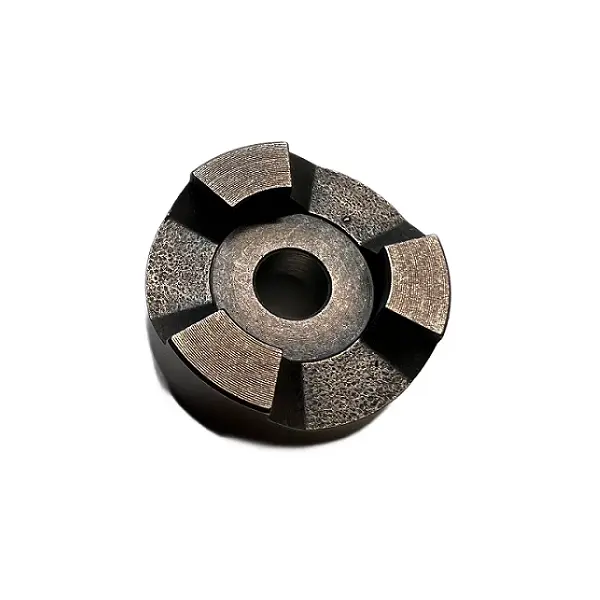

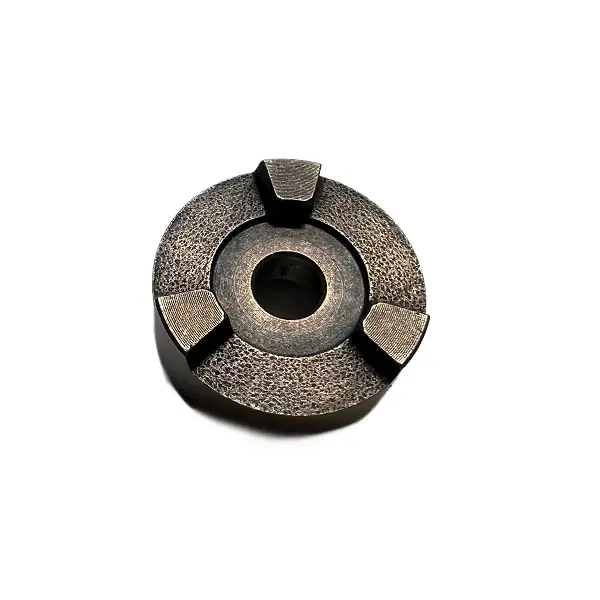

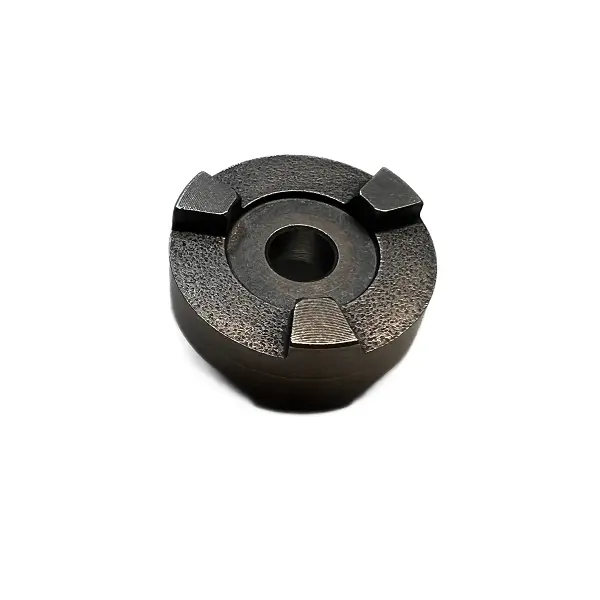

Zero Backlash Elastic Shaft Connector Flexible Jaw Coupling for Motors

This China Zero Backlash Elastic Shaft Connector Flexible Jaw Coupling for Motors from Qimao Metal Manufacturer, such as connects motors to pumps, gearboxes, or other driven equipment without the rotational play found in standard flexible couplings. The elastic spider sits pre compressed between two metal hubs so there is no lost motion when the shaft reverses direction. That makes it a good fit for servo drives, positioning conveyors, and any application where holding position matters.

The flexible insert also dampens vibration and shock loads before they travel into sensitive components like encoder bearings or gear teeth. You get protection for expensive equipment while still having room for minor shaft misalignment. The jaw design handles angular, parallel, and axial offsets without forcing things to bind

Product Parameter (Specification)

Product Feature

· Zero Backlash Operation: The elastic spider sits pre compressed between jaw teeth so there is zero mechanical play when torque reverses. Zero Backlash Elastic Shaft Connector Flexible Jaw Coupling for Motors systems hold position accurately without hesitation or lost motion.

· Vibration Dampening: Rubber or polyurethane material absorbs shocks from starting and stopping. Sensitive components like encoders or gear teeth see less impact stress over time.

· Electrical Isolation: The plastic or polymer spider breaks stray current paths between motor and driven equipment. This stops bearing fluting damage common on variable frequency drive motors.

· Misalignment Tolerant: Handles angular misalignment up to one degree and parallel offset up to 0.010 inches depending on size. Shaft bearings carry less side load compared to rigid couplings.

· Easy Spider Replacement: When the elastic insert wears out after thousands of hours, you slide the hubs apart and snap a new spider in. No need to remove shafts or re align the whole system.

· Material Options: Choose standard NBR rubber for general use, polyurethane for higher torque, or Hytrel for chemical exposure and high temperature areas.

Our Factory Advantage

We produce the Zero Backlash Elastic Shaft Connector Flexible Jaw Coupling for Motors by cold header machining, so every products with same size and specification, we control the tolerance in correct range. The jaw pockets are broached or wire cut depending on batch size to maintain tight fit with the spider legs. Each coupling gets a test assembly before packing to verify zero backlash condition. You can order standard bore sizes from stock or give us your motor shaft dimension and keyway spec for custom boring. We stock replacement spiders in three durometers soft for dampening, medium for general use, or hard for high torque. Sample orders of one or two pieces ship within 48 hours for prototype testing. Random production couplings go on our torque test stand to verify slip resistance before labeling. We also offer laser alignment sheets for customers who want to track machine train alignment over time.

Product Maintenance

Maintenance the product Zero Backlash Elastic Shaft Connector Flexible Jaw Coupling for Motors is straightforward. When the elastic spider wears out after thousands of hours, you slide the hubs apart and snap in a new one. No need to pull the hubs off shafts or realign the whole system. Hubs come in aluminum, steel, or stainless steel. Spider materials include NBR rubber, polyurethane, or Hytrel depending on your torque and temperature needs.
