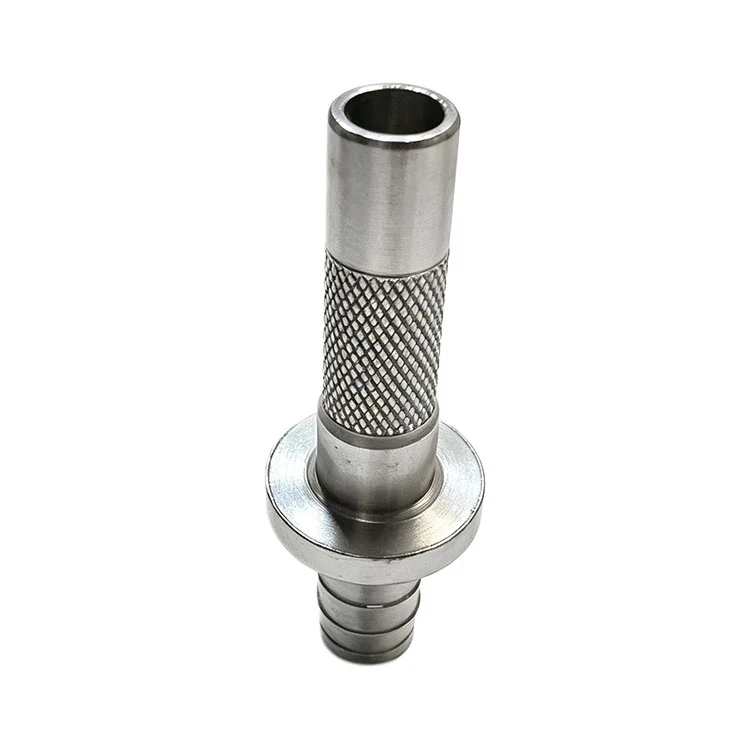

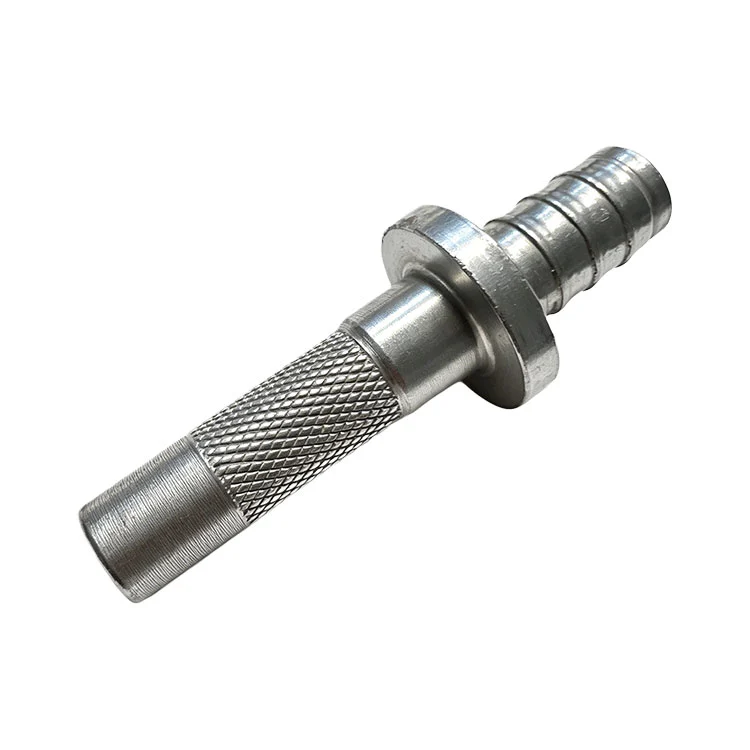

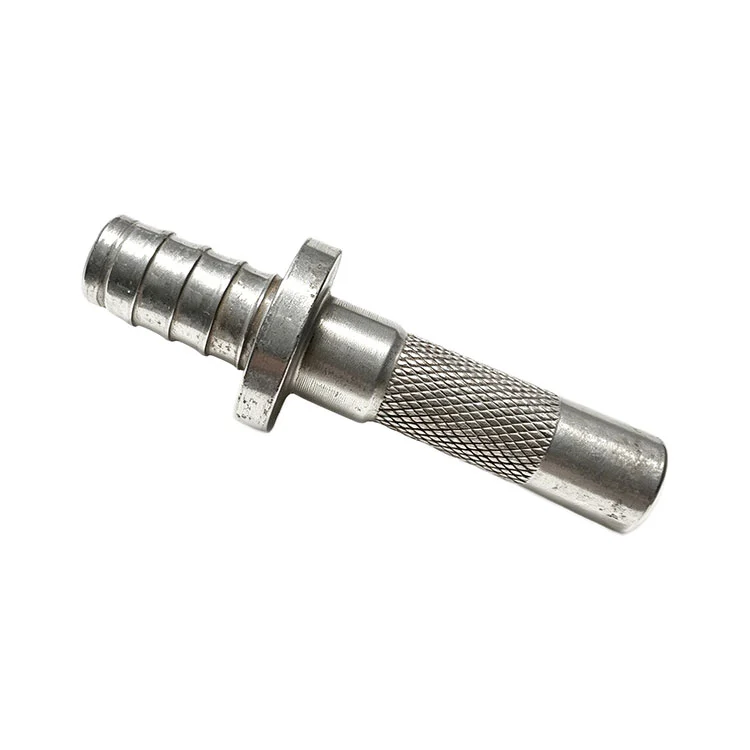

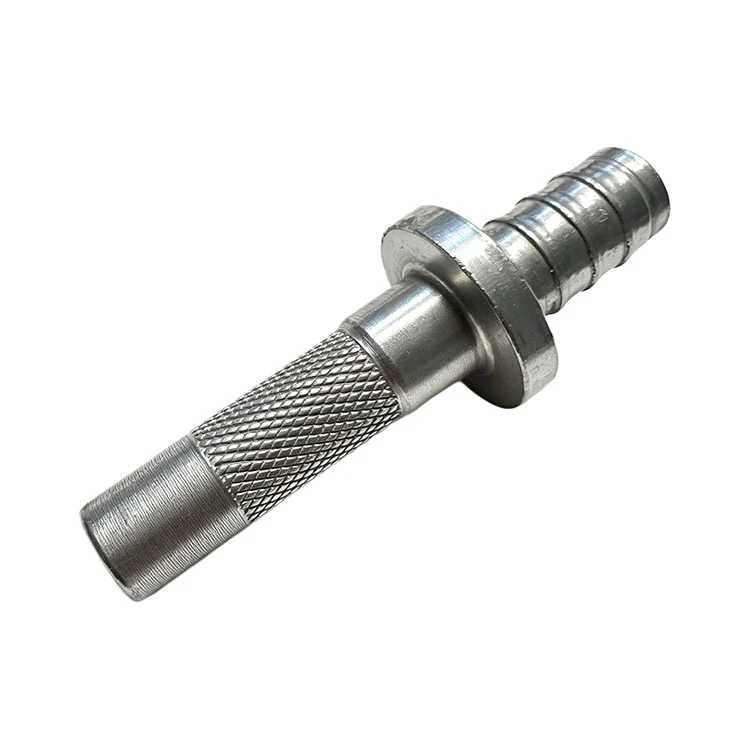

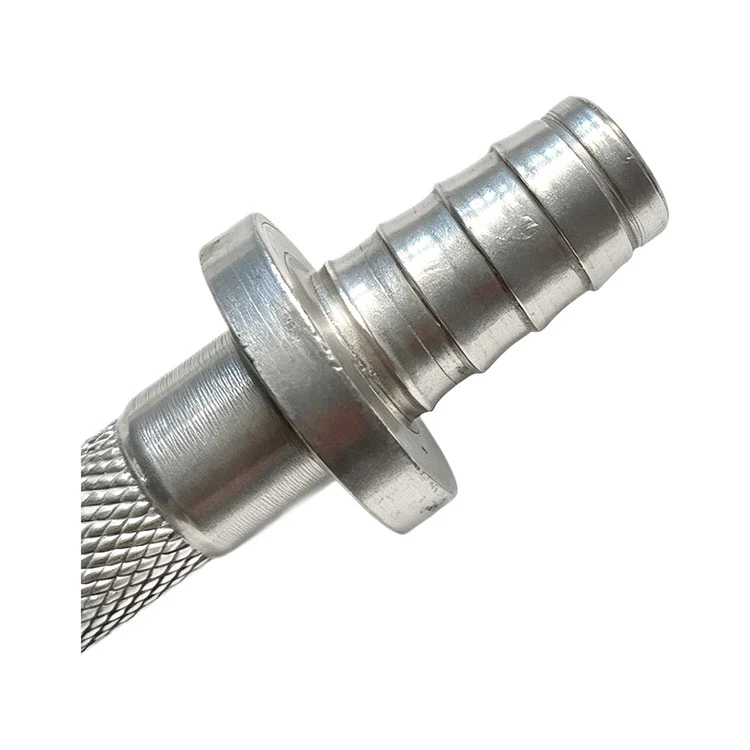

Steel Knurled Shank Flange Stop Barb Hose Connector

The quality Steel Knurled Shank Flange Stop Barb Hose Connector from Qimao Metal Manufacturer is a practical connecting component specifically engineered for convenient hose assembly. It precisely resolves common pain points associated with hose installation—such as difficulty in handling and inaccurate positioning—particularly in wet or oily environments. Thanks to its robust materials and user-centric structural design, this connector is widely utilized across various industrial, agricultural machinery, and automotive applications, making it the preferred accessory for field technicians and operators.

Manufactured from high-quality steel, this hose connector boasts a tensile strength far superior to that of brass or plastic alternatives, enabling it to withstand the rigorous demands of complex operating environments, such as engine compartments and heavy industrial machinery. Its zinc-plated surface provides essential corrosion resistance, making it suitable for use in both indoor settings and engine bay applications. The connector's core design highlights—the knurled shank and flange stop—fundamentally optimize the assembly experience: the knurled shank ensures a secure grip even when hands are wet or oily, effectively preventing slippage; meanwhile, the flange stop provides a clear visual and tactile indication that the hose has been fully seated, eliminating the need for guesswork and significantly boosting both assembly efficiency and accuracy. Compared to smooth-shank connectors, this design offers a marked improvement in operational convenience.

Our production advantage

We machine the products Steel Knurled Shank Flange Stop Barb Hose Connector on CNC lathes in our own workshop, so we control the fit from bar stock to finished part. Knurls are cut sharp but not too sharp – we learned that balance through trial and error. Barbs are consistent, not shallow or too aggressive. Deburring is done by hand because machines miss edges. Zinc plating is done by a local shop we’ve used for years. Common sizes ship from stock. Custom lengths, stainless steel, or different knurl patterns are possible but take a couple extra weeks. No fake marketing claims – just straight specs and real lead times.

Manufacturer Guarantees

1. Controlled Quality: Produced in-house using CNC lathes, allowing for comprehensive quality control from raw materials to finished goods; key parameters—such as barb diameter and knurling sharpness—are batch-tested to ensure zero defects.

2. Integrity in Business: Committed to honest business practices—we never falsify material certifications or exaggerate product performance; we provide accurate product specifications, lead times, and test data.

3. Flexible Supply Chain: Standard sizes are available in stock for immediate delivery, allowing for rapid fulfillment of small orders; custom products can be manufactured precisely according to technical drawings to meet specific client requirements.

Product Parameter (Specification)

Product Feature

1. Effortless Handling & Operation: Features a knurled handle design that ensures a secure grip—even when hands are wet or oily—preventing slippage during assembly and significantly boosting operational efficiency.

2. Precise Positioning & Efficient Assembly: Incorporates a flanged stop structure that clearly indicates when the hose is fully seated; this eliminates guesswork and prevents leaks or loose connections caused by improper installation.

3. Robust Materials & Exceptional Durability: Manufactured from steel, offering strength far superior to brass or plastic; capable of withstanding high vibration and demanding operating conditions to meet rigorous industrial-grade requirements.

4. Precision Craftsmanship & Comprehensive Protection: Manually deburred to eliminate sharp edges that could damage the hose; features a zinc-plated surface finish (available in yellow or clear zinc options) to provide essential rust protection, making it suitable for a wide range of applications.

5. High Compatibility & Secure Connections: Features uniform barb dimensions that create a tight, flush fit with the hose, ensuring a leak-proof seal and preventing accidental disconnection.

6. Flexible Customization to Meet Specific Needs: Supports customization of barb profiles, knurling patterns, lengths, and thread directions; stainless steel material options are also available to accommodate unique application scenarios.

Why Choose Us

We make these Steel Knurled Shank Flange Stop Barb Hose Connector in batches on CNC lathes and screw machines. Here's the process:

· Start with carbon steel bar stock (hex or round, depending on the other end)

· Machine the barb profile – the ridges need to be sharp but not cutting-edge sharp

· Cut the knurl (straight or diamond – we have both wheels)

· Part off and face to length

· Deburr – important. Sharp edges cut hoses.

· Send out for zinc plating (yellow or clear, customer's choice)

· Inspect – check barb diameter, knurl sharpness, and thread fit if applicable

What we don't do – Fake material certs. If you ask for stainless, we buy stainless. If you ask for steel, we tell you it's steel.

What we can do – Custom barb profiles, different knurl patterns, longer shanks, left-hand threads. Just send a drawing.

Application

1. Small engine fuel lines

Lawn mowers, generators, pressure washers, log splitters. The Steel Knurled Shank Flange Stop Barb Hose Connector helps when you're working in a tight engine bay with oily hands.

2. Pneumatic systems

Air lines on compressors, air tools, shop plumbing. Steel holds up better than brass in high-vibration environments.

3. Coolant and water lines

Industrial equipment, welding machines, coolant systems. The flange stop ensures consistent flow path length.

4. Agricultural sprayers

Chemical spray lines – but check compatibility first. Some chemicals eat through zinc plating.

5. Automotive and marine

Vacuum lines, heater hoses, bilge pump lines. Steel is fine for most, but salt water needs stainless steel.

Not recommended for – High-pressure hydraulic (over 300 PSI depends on hose and clamp), food/beverage (zinc not food-safe), or constant saltwater immersion.
