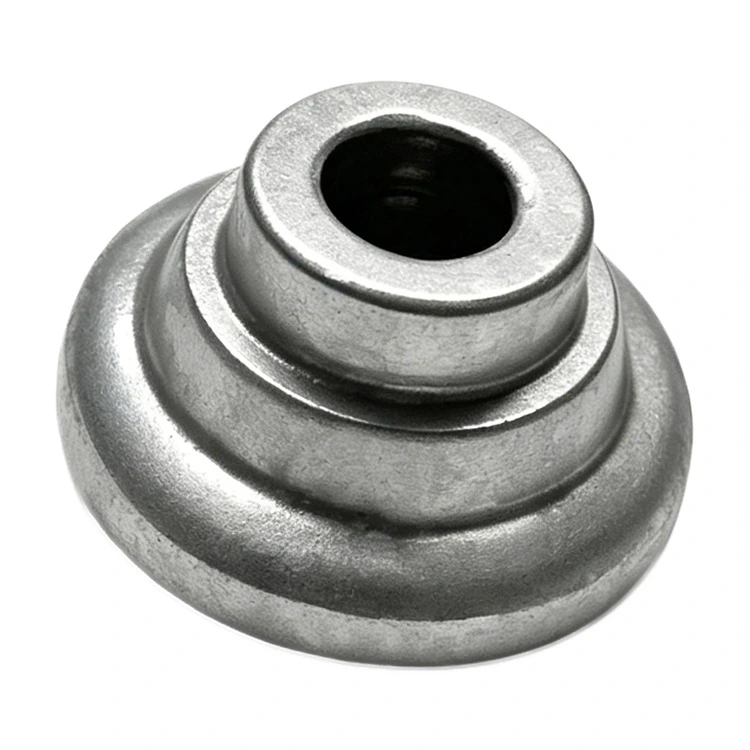

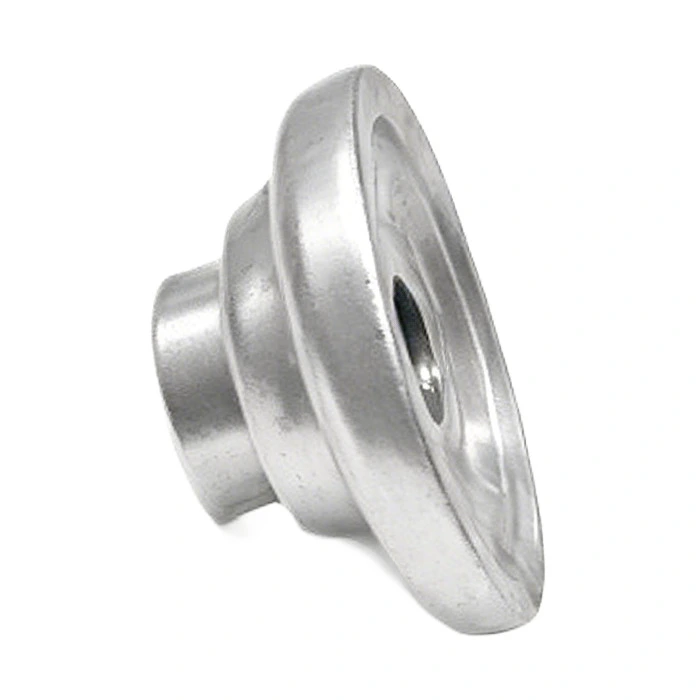

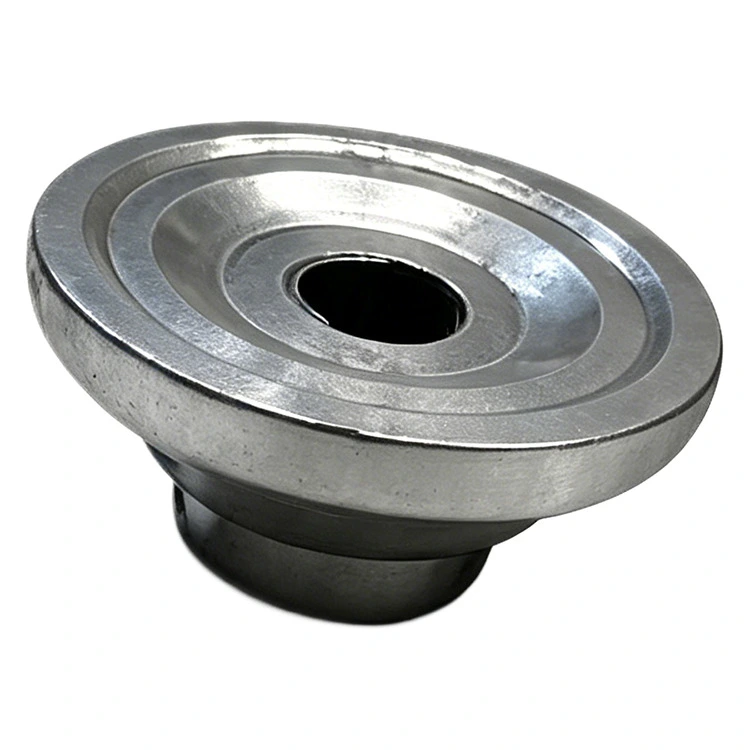

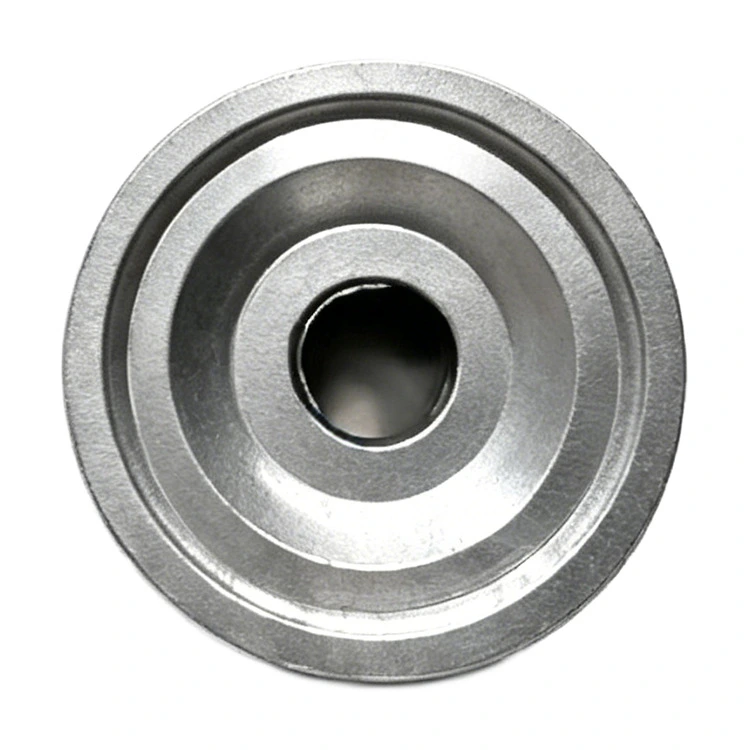

Forged Steel Automotive Valve Spring Retainer Component

Qimao Metal Manufacturer products Forged Steel Automotive Valve Spring Retainer Component is a simple part with a brutal job. Sits right on top of the valve spring and holds the little valve locks in place. If that retainer fails, the valve drops into the cylinder. Engine done. So we do not mess around.

We take forged steel blanks, not cast scrap or mystery metal. Then we CNC machine the critical surfaces where the spring seats and where the locks grab. The rest of the part stays as-forged. That keeps strength high and cost reasonable.

These fit most standard valve stems and work with stock or aftermarket springs. You install them just like factory retainers, but they will take way more abuse. No special tools needed. Just common sense and a valve spring compressor.

Product Parameter (Specification)

Practical Value

It's very important, if this part fails, the valve drops and the engine is done. That’s why we don’t cut corners. , so installation feels like factory parts. We sell these mostly to guys building pushrod V8s and high-performance four-cylinders. They hold up under stiff springs and high lift cams. If you’ve bent or cracked aluminum retainers before, this steel version is your next step.

Product Feature

1. Forged grain structure. When you forge steel instead of cutting it from a round bar, the internal grain flows around the shape of the retainer. This makes it nearly impossible to crack under high spring pressure. We have tested these Forged Steel Automotive Valve Spring Retainer Component on spring pressures over 400 lbs open, and they don't flinch.

2. Heat tolerance. Aluminum retainers start to lose hardness around 300°F. Exhaust valves run much hotter than that. This forged steel version laughs off the heat. You won't see the valve tip sinking into the retainer or the locks wallowing out the taper after a few hard pulls.

3. Precision inner taper. The angle where the valve locks sit needs to be perfect. If it is off, the locks rotate or sit unevenly. We cut this surface after heat treating, so nothing moves. The locks grab the valve stem and stay exactly where you put them.

4. No spring seat confusion. The outer step where the spring sits is machined flat and square. Some aftermarket retainers have a radius here that makes the spring bind or sit crooked. Ours is dead flat. Your spring pressures will be consistent cylinder to cylinder.

Application

1. High lift hydraulic roller cams. Once you go past .550" lift with aggressive ramp rates, aluminum retainers start to flex. We see this a lot on LS and Gen III Hemi engines. The steel retainer keeps the valve train geometry stable when the cam tries to slam the valve shut.

2. Turbo and supercharged builds. Boost adds cylinder pressure, which fights the Forged Steel Automotive Valve Spring Retainer Component trying to close the valve. You need stiffer springs. Stiffer springs need a stronger retainer. We also see less valve float at high rpm with these compared to stock retainers.

3. Road race and circle track. Sustained high rpm kills valve train parts slowly. After twenty minutes at 6,500 rpm, an aluminum retainer might have micro-welded itself to the valve lock. Steel does not gall like that. Pull these down after a season, and they still look new.

4. Broken retainer replacements. Sometimes you already have a good spring but you cracked a retainer during installation or a valve float event. You do not want to buy a whole new spring kit. Just grab these retainers, reuse your springs and locks, and get back to racing.
