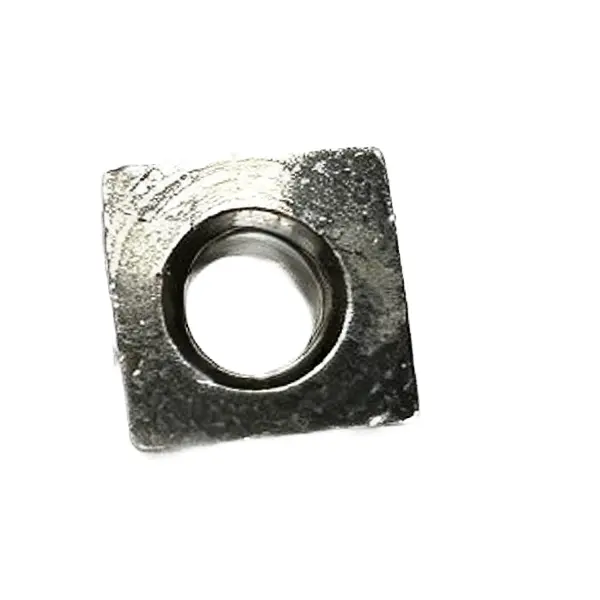

Anti-Rotation Square Base Blind Weld Nut for Single-Side Welding

The Anti-Rotation Square Base Blind Weld Nut for Single-Side Welding from Qimao Metal Manufacturer can solve the struggle that you can only reach one side. It is designed for single-side welding on metal frames, mostly thin-walled tubes or square sections. Instead of needing two hands or a helper, you drop it into a pre-punched hole—round or square—and weld from the outside. The square base bites into the metal, so it won’t spin when you torque a bolt later. No more tapping threads into soft frames or using cage nuts that loosen over time. It’s a permanent, clean thread on the blind side of your assembly. Think of it as your hidden thread solution.

Product Parameter (Specification)

Why You’ll Like It?

· No more two-side access nightmares. You weld everything from the outside, even when the back side is completely hidden inside a closed frame. Saves labor and frustration.

· The Anti-Rotation Square Base Blind Weld Nut square base locks itself in place during welding. No spinning, no slipping. Your bolt goes in straight every time, even under high vibration or heavy torque.

· Designed for thin metal. Won’t burn through or deform your frame if you use standard MIG or spot welding settings. Works on mild steel and some coated surfaces.

· Low profile means no bulging on the outside. Your final product looks clean, and the nut stays flush without extra grinding or finishing work.

Where To Use?

· Metal office chair frames. You need a hidden Anti-Rotation Square Base Blind Weld Nut for Single-Side Welding on metal frames inside a hollow tube for armrest bolts. This welds from outside, no internal access needed.

· Aluminum window and door frames (steel version only). Perfect for hinge reinforcements where the other side is sealed with glass or panel.

· Solar panel mounting rails. Thin-wall square tubes on rooftops. Weld nuts on the ground, then bolt brackets from outside during installation.

· Industrial control cabinets. Mount internal components like DIN rails without drilling through the front panel. Clean exterior, strong interior threads.

· Agricultural equipment guards. Think tractor side panels. Nuts stay put even with constant shaking and dirt. No loose cage nuts to replace.

Production Details

1. Low-carbon steel, not aluminum. That 0.42g weight is steel with a thin base. Threads from M4 to M10, plus inch sizes like 1/4-20. Square base runs 12mm to 28mm wide. Total height is 4mm to 7mm.

2. The Anti-Rotation Square Base Blind Weld Nut for Single-Side Welding on metal frames works on metal frames from 0.8mm to 3mm thick. Use resistance or MIG welding. Two diagonal spots are enough—don't weld all four sides unless your frame is over 2mm thick.

3. An M6 size handles about 1,200 lbs push-out force and 85 in-lbs of torque without spinning.

4. Finish is plain steel with light oil. Zinc plating available on request.

5. One tip from our shop floor: clean the hole before welding. Oil or paint ruins the weld. Takes ten seconds. Saves you a lot of frustration later.
