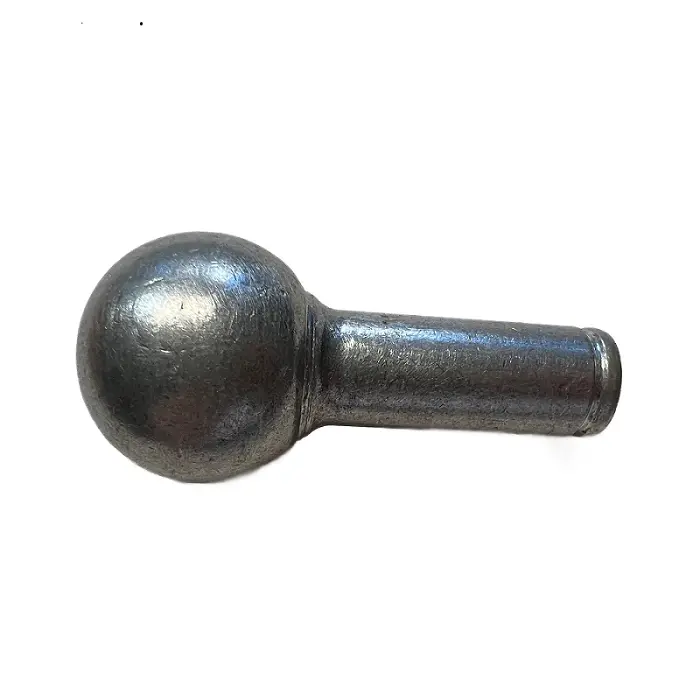

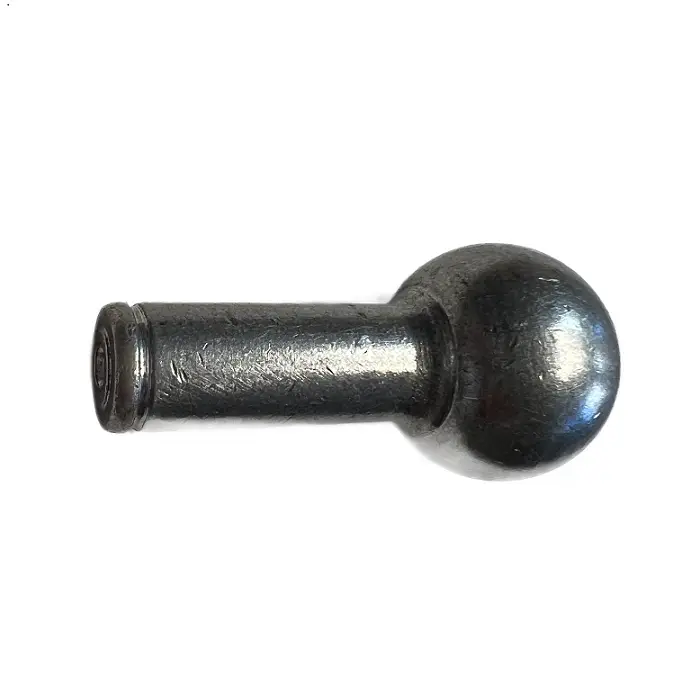

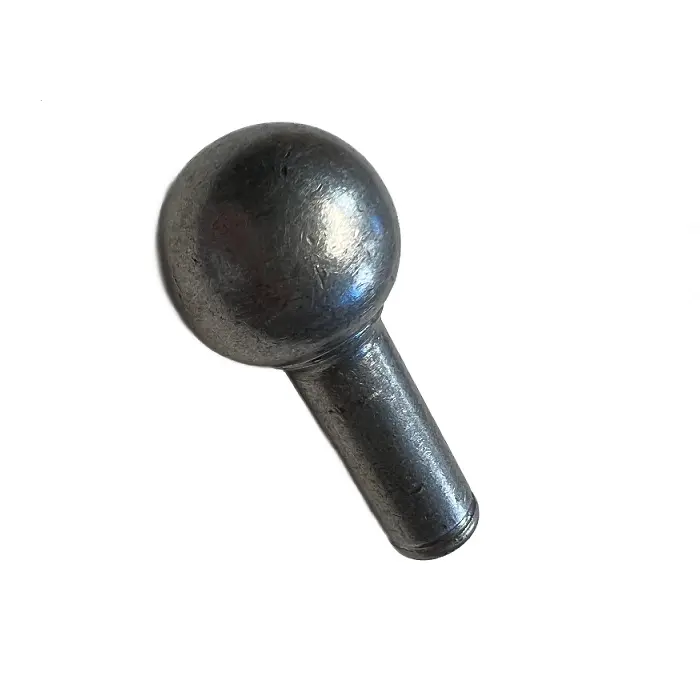

Adjustable Ball Stud for Control Arm and Tie Rod End

Adjustable Ball Stud for Control Arm and Tie Rod End from Qimao Metal Manufacturer designed specifically for aftermarket suspension repairs and custom builds, this adjustable ball stud replaces fixed-length OEM studs where alignment or positioning needs fine-tuning. The body is cold-formed from 40Cr steel and induction-hardened at the ball surface to HRC 58–62, with a micro-peened finish to prevent stress fractures. Threads are rolled — not cut — to preserve fatigue strength under cyclic loads. A self-locking nylon patch (or optional prevailing torque all-metal design) secures the adjustment once set. The taper angle matches standard steering knuckles (1:8 or 1:10, depending on variant), and the hex drive allows torque application without damaging the stud shoulder. Each unit is 100% magnetic particle inspected before packing. If your existing ball stud is either too short, too long, or misaligned after a lift kit installation, this adjustable version solves the problem directly at the linkage point — no need to swap arms or racks.

Product Parameter (Specification)

Product Feature

• Stepless length adjustment – the Adjustable Ball Stud for Control Arm and Tie Rod End compensates for manufacturing tolerances or lift kit misalignment

• Forged body, not machined from bar stock – higher grain flow strength and impact resistance

• Rolled threads – better fatigue life than cut threads; no sharp roots that crack

• Induction-hardened ball surface (HRC 58–62) – resists galling, flaking, and wear even with no grease fitting

• Dual locking options – nylon patch for one-time assembly, or all-metal prevailing torque for reuse

• OEM taper compatibility – fits 1:8 and 1:10 knuckle tapers used on most domestic and import vehicles

• Corrosion-resistant finish – zinc flake with topcoat, 480h salt spray (tested per ISO 9227)

• Full traceability – each part stamped with batch code; test reports include raw material certs

• Hex drive built into the body – no special tool needed for adjustment; works with a standard wrench

• No play after torquing – taper seats fully; design does not rely on a rubber boot to hide looseness

• Works with or without dust boot – we offer a greaseable boot option, but the stud itself does not fail early if boot tears

• Left-hand thread variant available – for steering links where rotation might loosen a right-hand stud

• Color marking groove – lets you visually confirm if the locknut has moved after installation

Application

• Lifted truck front suspension –Stepless length adjustment – the Adjustable Ball Stud for Control Arm and Tie Rod End compensates for manufacturing tolerances or lift kit misalignment realign control arm position after height change (2 to 6 inches lift)

• Custom off-road steering links – fine-tune toe or Ackermann geometry on solid front axles

• Aging passenger cars – replace worn fixed studs where OEM parts are discontinued or backordered

• Racing and rally control arms – quick camber or caster adjustment without swapping arms or slotting holes

• Agricultural machinery linkages – take up slack in tractor steering linkages after years of wear

• Prototype or kit car builds – adjust suspension geometry during development without remaking link bars

• Trailer axle steering linkage – correct misalignment from frame differences on custom trailers

• Heavy-duty truck tie rod ends – compensate for slight tube length errors after new end installation

• Utility vehicle (UTV) steering repairs – replace damaged ball studs with an adjustable version to correct bent mount tabs

• Snowplow linkage systems – adjust blade angle linkage play without replacing whole hydraulic rods

• Industrial lever linkages – fine position adjustment where fixed studs would require re-drilling mounting holes

• Small-batch military or tactical vehicle restoration – match original geometry when OE taper dimensions are missing

• Drift car front knuckles – correct roll center after modified lower control arm installation

• Go-kart and mini buggy steering – simple toe adjustment using just a wrench instead of threaded tubes

Factory Advantage

We’ve been making Stepless length adjustment – the Adjustable Ball Stud for Control Arm and Tie Rod End compensates for manufacturing tolerances or lift kit misalignment for over 12 years — mostly for commercial chassis builders who can’t afford returns. Unlike trading companies, we run our own induction heat treatment line and in-house CMM room. That means we control hardness consistency from batch to batch. Our adjustable ball studs come off the same CNC lathes used for OE-tier suppliers. We don’t chase lowest-grade steel; we use 40Cr or equivalent only. Lead time for non-stock sizes is usually 15–20 days, and we hold safety stock for common M14–M20 threads. If a customer finds a dimensional issue (rare), we ship replacement first — no argument. Also, we provide full inspection PDFs with every shipment, not just certificates. For buyers tired of vague “made to standard” claims, we offer clear data.
