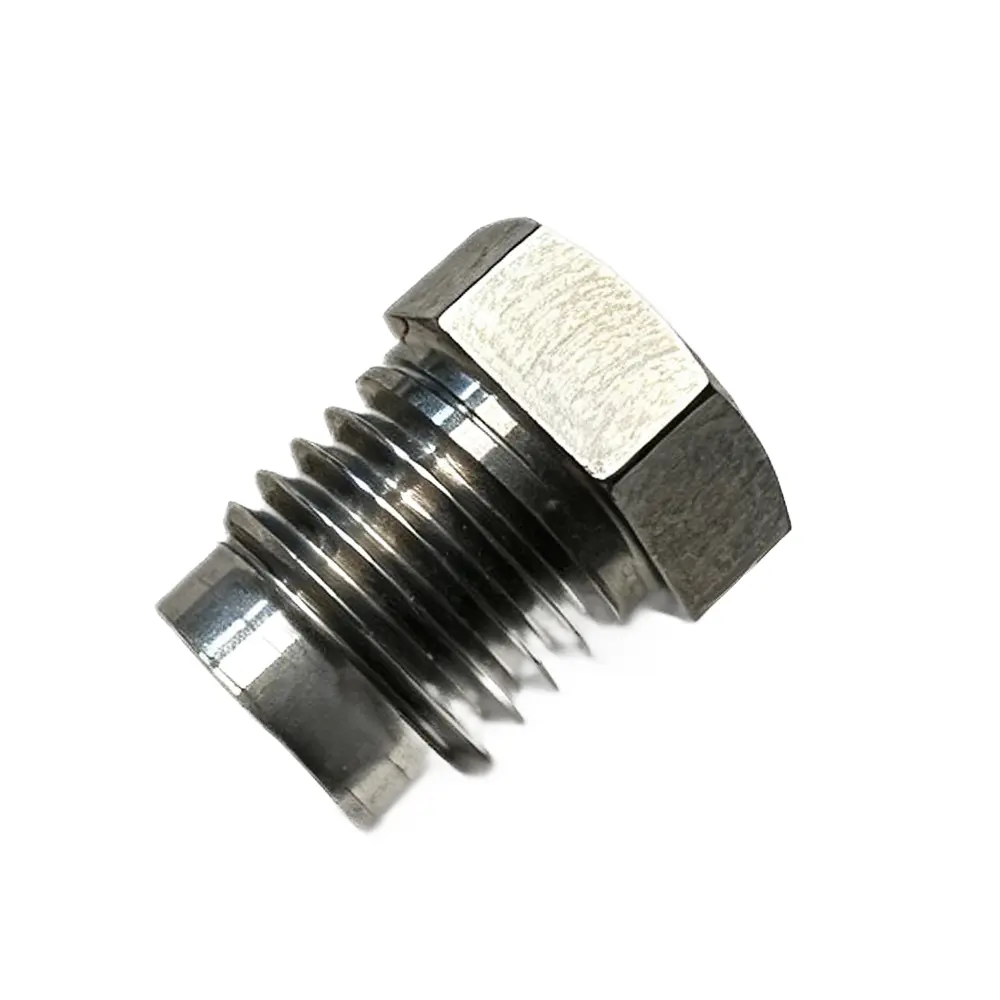

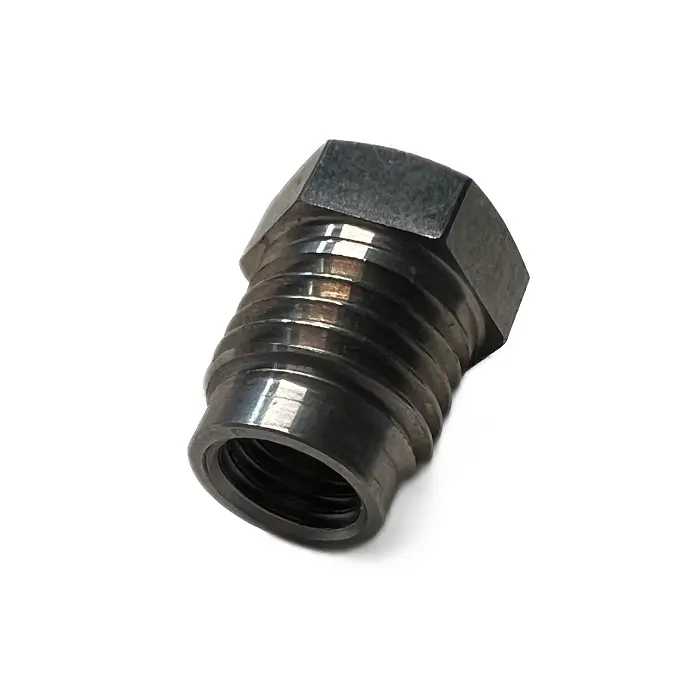

Universal Female to Male Thread Adapter

Qimao Metal Manufacturer durable Universal Female to Male Thread Adapter features a standardized female NPT or BSPP swivel on one end and a fixed male NPT or Metric tapered thread on the opposite, effectively changing the gender and size of the system port. The body is constructed from low-carbon steel (12L14) or optional 316 Stainless, heat-treated to RC 22-26 to prevent thread deformation under repetitive torque. The male threads are roll-formed, not cut, which preserves the grain flow of the metal, resulting in 30% higher fatigue resistance compared to machined-only threads. Dimensional tolerances adhere to ASME B1.20.1 for taper pipe threads, with a controlled hex flat-to-flat within +/- 0.005 inches for wrench engagement. Each unit is shop-air tested at 1000 PSI to validate the sealing lands before blasting and oil-coating for corrosion resistance.

Product Parameter (Specification)

Product Feature

• Bidirectional Flow: Universal Female to Male Thread Adapter symmetrical hex design offers equal wrenching surface regardless of inlet orientation.

• Dry-Seal Capability: Optional BSPP parallel threads with bonded O-ring groove allow for sealing without thread dope on straight threads.

• Wide Pressure Spectrum: Rated from vacuum (29.9 inHg) up to 6, 000 PSI, suitable for both suction return lines and high-pressure injection circuits.

• Reusability: Rolled threads withstand up to 15 make-and-break cycles before showing measurable wear, outperforming standard cut-thread adapters.

Application

• Retrofit Projects: Converting obsolete pump ports to Universal Female to Male Thread Adapter ports on aging injection molding machines.

• Mobile Equipment: Adapting auxiliary hydraulic take-off valves on excavators to connect aftermarket breaker tools with different thread standards.

• Test Bench Rigs: Quickly swapping sensors and pressure gauges without hard-piping, allowing rapid configuration changes for R&D validation.

• HVAC Chillers: Bridging imperial threaded service valves to metric refrigeration hoses for european-manufactured compressors.

• Subsea Tooling: (With 316L grade) Used in ROV manipulator arms where compact gender-changing is required to interface specialized end-effectors.

Production Details

1. The Universal Female to Male Thread Adapter threads undergo a triple-roll forming process rather than single-point cutting, which work-hardens the root radii to withstand repeated hammering from impact wrenches without stripping.

2. Female threads are precision broached with a spiral point tap to achieve a 75% depth-of-thread engagement, ensuring the female end grips the mating component's full flank surface.

3. We apply a manganese phosphate conversion coating (8-12 microns thick) that acts as a dry lubricant, effectively eliminating galling when threading into stainless steel manifolds.

4. All sealing tapers are air-gauged using a Merkle bench to L1-hand-tight specifications, guaranteeing a metal-to-metal seal on the first five threads without over-relying on sealant tape.

5. Back-up wrench flats are machined with a micro-serrated texture to prevent socket slippage during high-torque assembly.
